Single Core 120mm² XLPE/PVC/PE ABC Aerial Bundled Cable | Aluminum | 600/1000V | Overhead Power Line

Low Voltage Power Cables5
Description

Single Core 120mm² XLPE/PVC/PE ABC Aerial Bundled Cable | Aluminum | 600/1000V | Overhead Power Line-Picture1 Single Core 120mm² XLPE/PVC/PE ABC Aerial Bundled Cable | Aluminum | 600/1000V | Overhead Power Line-Picture1

Product Overview

The Single Core 120mm² ABC Aerial Bundled Cable is engineered for modern overhead power distribution networks. Compliant with IEC 60502 standards, this weather-resistant cable eliminates traditional bare conductor risks while providing superior insulation protection. Designed for urban grid upgrades, street lighting, and temporary construction power, its UV-stabilized construction ensures reliable performance in -30°C to +70°C environments.

Key Technical Specifications

Parameter Specification Standard
Conductor Class 1/2 Solid Aluminum (Al) IEC 60228
Cross-Section 120 mm² -
Insulation XLPE/PVC/PE Compound IEC 60502-1
Rated Voltage 600/1000V (U₀/U) IEC 60502
Test Voltage 3.5 kV AC (5 min) IEC 60502
Temperature Range Operational: -30°C to +70°C IEC 60502
Bending Radius 12 × Cable Diameter IEC 60229
Flame Retardancy Self-Extinguishing IEC 60332-1
Conductor Resistance 0.253 Ω/km @ 20°C IEC 60228

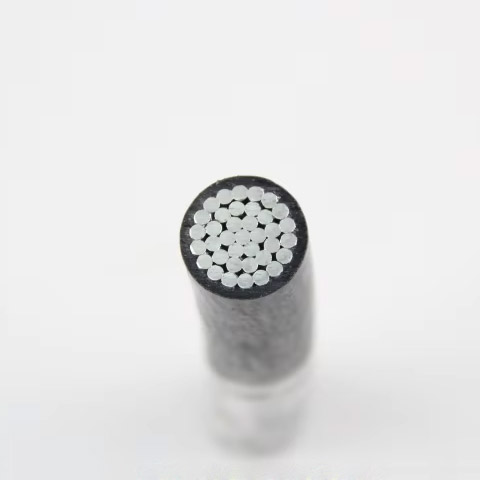

Construction & Materials

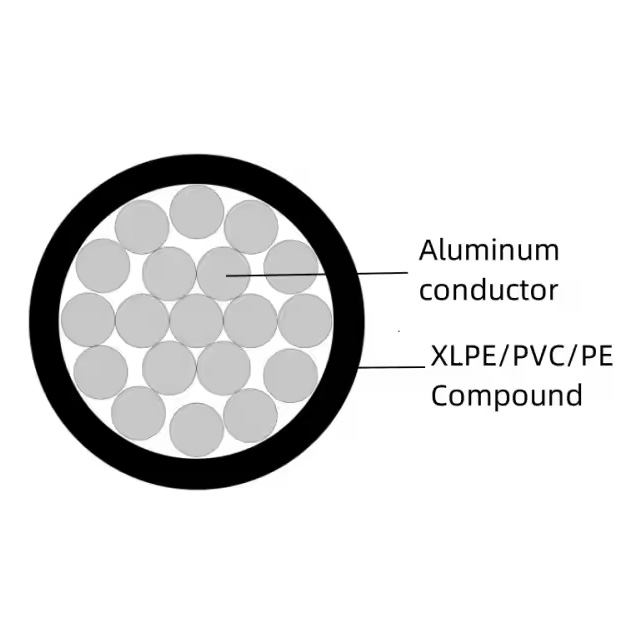

  1. Conductor:

    • Material: Stranded Aluminum (Class 1/2)

    • Structure: 24 wires × 2.56 mm

    • Cross-Section: 120 mm²

  2. Insulation:

    • Triple-compound layer: XLPE (mechanical strength) + PVC (flame retardancy) + PE (weather resistance)

    • Color: UV-stabilized Black

    • Thickness: 2.0 mm nominal

  3. Identification:

    • Longitudinal ribbing or printed marking indicating specifications

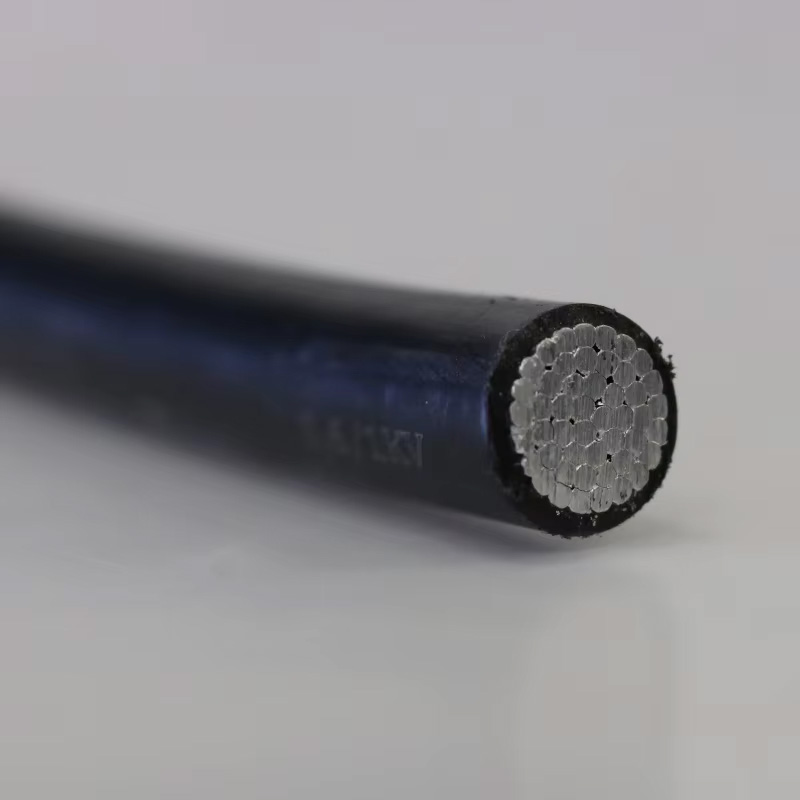

Single Core 120mm² XLPE/PVC/PE ABC Aerial Bundled Cable | Aluminum | 600/1000V | Overhead Power Line-Picture2

Material Advantages

Property Benefit
Weather Resistance UV/ozone-resistant compounds for 20+ years
Corrosion Protection Integrated anti-oxidation layer
Bird/Animal Proof Eliminates short circuits from fauna contact
Reduced Clearance Enables compact urban installations
Low Maintenance No tree-trimming requirements

Applications

Ideal for:

  • ✔️ Urban power grid modernization

  • ✔️ Street lighting networks

  • ✔️ Construction site temporary power

  • ✔️ Outdoor lighting systems

  • ✔️ Industrial park overhead distribution

  • ✔️ Rural electrification projects

Technical Data (1×120mm²)

Parameter Value Tolerance
Conductor Structure 24 × 2.56 mm -
Overall Diameter (OD) 17.2 - 18.1 mm ±0.3 mm
Insulation Thickness 2.0 mm +0.1 mm
Conductor Resistance 0.253 Ω/km ±2%
Insulation Resistance ≥0.0035 MΩ·km @ 70°C
Cable Weight 395 kg/km ±5%

Standards & Certifications

Standard Requirement
Electrical IEC 60502-1, IEC 60228
Mechanical IEC 60229 (bending test)
Environmental IEC 60754-1 (halogen-free)
Flame Test IEC 60332-1-2
Quality ISO 9001 Certified
Regional CPR Euroclass Eca (if applicable)

Installation Notes:

  • ✔️ Minimum bending radius: 206 mm (12×OD)

  • ✔️ Use ABC-specific suspension clamps

  • ✖️ Not for direct burial or underground use

  • ⚠️ Maintain phase-to-phase clearance per local regulations
