UL 854 SE SEU SER Aluminum Conductor service entrance cable 2/0AWG 4/0AWG
Applications:

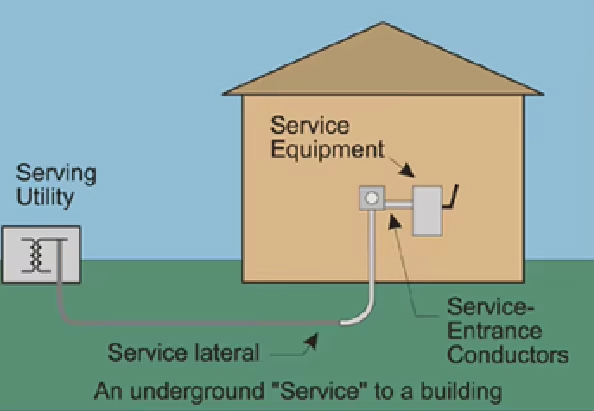

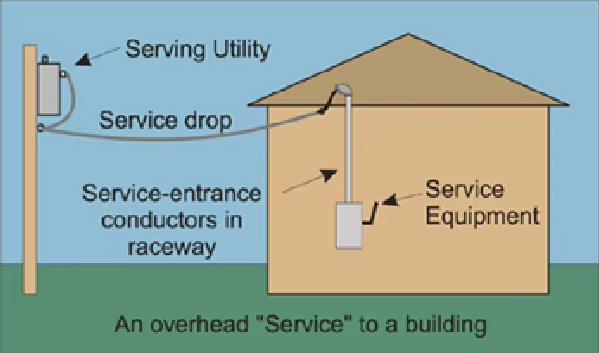

Aluminum Service Entrance Cable Type SE, with a rated voltage of 600V, is used to transmit power from the junction box to the meter base and from the meter base to the distribution cabinet. It may be used in all applications where Type SE cable is permitted. Type SE cable can be used in dry or wet environments at a working temperature not exceeding 90°C.
Standard:
- ASTM-B-800 and B-801
- UL Standard 44 for XHHW-2
- UL Standard 854 for SER/SRU
- RoHS environmental conductive requirement
Product Characteristics:
- Conductor: AA-8030 aluminum alloy conductors
- Insulation: Cross-linked polyethylene (XLPE) insulation
- Jacket: Sunlight resistant, moisture resistant, and flame retardant
- Temperature Range: Suitable for temperatures up to 90°C in wet and dry locations
- Environmental: Free of harmful heavy metals in compliance with RoHS
- Voltage Rating: 600 Volt
Specification:
The AA-8000 aluminum alloy conductor is applied in Type SER/SEU cable. Its insulated core complies with the requirements of Type XHHW-2 in UL 44. The insulation material is cross-linked polyethylene (XLPE) with characteristics of abrasion resistance, moisture proof, and heat resistance. Meanwhile, the insulation has flame retardant properties, which can meet the FT2 level combustion test requirement. The outside of the cable core is wrapped with a fibrage tape, and both the insulated wire core and outer sheath meet the 720-hour sunlight resistance requirement.
SER Cable's Phase Conductors Identification:
- 3 Conductor: Black and Black with Red Stripe
- 4 Conductor: Black, Black with White Stripe, and Black with Red Stripe
- 5 Conductor: Black, Black with White Stripe, Black with Red Stripe, and Black with Blue Stripe.

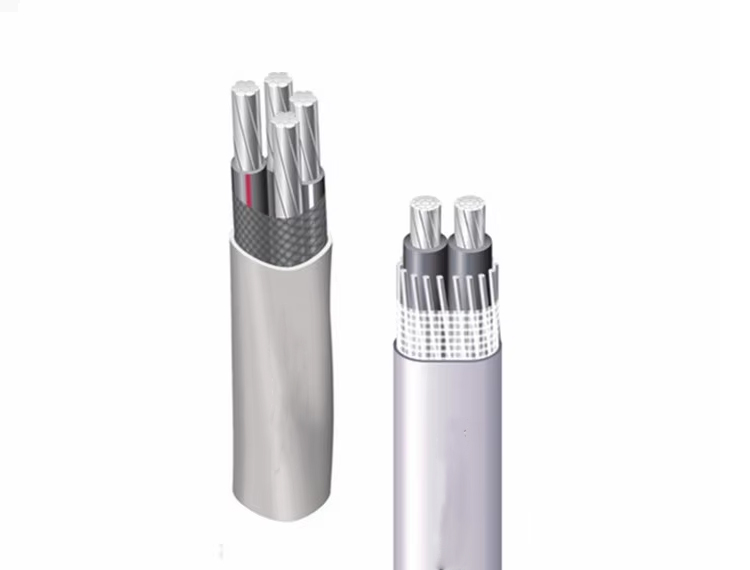

SE-R

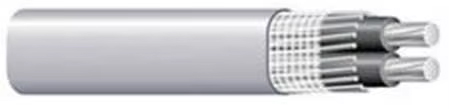

SE-U

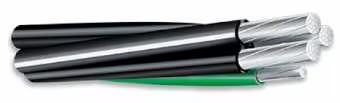

USE/USE-2
