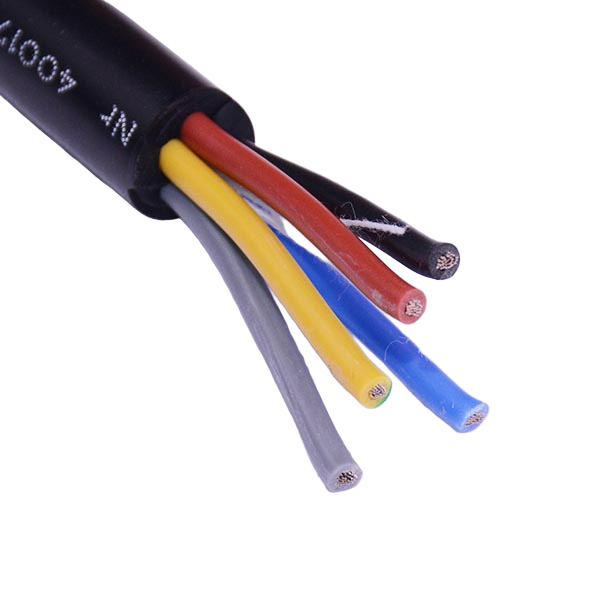

5-Core Silicone Rubber Power Cable | 0.6/1kV Flexible High-Temp Cable for Harsh Environments

Low Voltage Power Cables Silicone Rubber Insulated Cables18
Description

Product Overview

The 5-Core Silicone Rubber Power Cable delivers reliable power transmission in demanding industrial environments. Featuring superior thermal stability (-60°C to +180°C), exceptional flexibility, and resistance to corrosion, this cable maintains optimal electrical performance under extreme conditions. Ideal for mobile and fixed installations in metallurgy, power generation, and petrochemical sectors. Compliant with IEC 60245, BS 6500, GB/T 5013.8, and relevant standards.

Key Features & Benefits

  • Extended Temperature Range: Continuous operation -60°C to +180°C.

  • High Short-Circuit Rating: Withstands 250°C (≤5 seconds).

  • Exceptional Flexibility: Maintains pliability across full temperature range.

  • Robust Environmental Resistance: Resists corrosion, ozone, moisture, oils, and chemicals.

  • Rated Voltage: 0.6/1kV (600V/1000V).

  • Multi-Core Design: 5-core configuration (e.g., 3-phase + N + PE).

  • Variants Available: Shielded (YGCP), flexible (YGCR), armored (YGC22), flame retardant (YGZ/YGZP), fluoropolymer insulated (YGC-F46R/P).

Technical Specifications

Parameter Specification
Rated Voltage (U<sub>0</sub>/U) 0.6/1 kV
Continuous Operating Temp -60°C to +180°C
Max. Short-Circuit Temp 250°C (≤ 5 sec)
Minimum Installation Temp -20°C
Insulation Silicone Rubber (Std.) / Fluoropolymer (Opt.)
Sheath Silicone Rubber (Flame Retardant Opt.)
Conductor Stranded Tinned Copper
Shielding Available (Copper Braid/Tape)
Armoring Steel Tape (YGC22)
Standards IEC 60245, BS 6500, GB/T 5013.8

Common Model Variants

  • YGC: Silicone Rubber Insulated & Sheathed

  • YGCP: YGC + Shield (EMI/RFI Protection)

  • YGCR: YGC + High Flexibility

  • YGC-F46R: Fluoropolymer Insulation + Silicone Sheath + High Flex

  • YGC-F46P: Fluoropolymer Insulation + Silicone Sheath + Shield

  • YGC22: YGC + Steel Tape Armor (Mechanical Protection)

  • YGZ: Silicone Insulated + Flame Retardant Silicone Sheath

  • YGZP: YGZ + Shield

  • JGG: Silicone Insulated High Voltage Cable

  • JGGR: JGG + High Flexibility

  • JGGP: JGG + Shield

  • JHXG: Silicone Insulated Motor Lead Wire

Construction & Materials

  1. Conductor: Stranded tinned copper (corrosion resistance, solderability).

  2. Insulation: High-grade Silicone Rubber (thermal stability, flexibility). Optional fluoropolymer (F46) for extreme chemical/thermal resistance.

  3. Core Identification: Color-coded or numbered per phase.

  4. Shielding (Opt.): Copper braid/tape for EMI/RFI suppression.

  5. Armoring (YGC22): Steel tape for crush/impact protection.

  6. Sheath: Silicone Rubber (environmental/mechanical protection, flexibility). Flame-retardant compound (YGZ/YGZP).

Application Scenarios

  • Mobile Equipment: Cranes, hoists, conveyors in steel mills, foundries.

  • High-Temperature Zones: Furnaces, ovens, kilns, boiler rooms (power plants).

  • Corrosive Environments: Petrochemical plants, refineries, chemical processing.

  • Areas Requiring EMI Shielding: VFD motor leads, sensitive electronics (YGCP/YGZP).

  • Demanding Mechanical Sites: Mining, ports, heavy machinery (YGC22 armored).

  • Flexible Power Routing: Robotics, automation, temporary installations (YGCR).

Selection & Ordering

  • Specify Model (e.g., YGCP, YGC22).

  • Specify Conductor Size (mm²).

  • Specify Length.

  • Detail Core Colors or numbering.

  • Custom Solutions: Available for unique requirements (shielding type, specialized materials).
