600V Copper TFFN/TFN Machine Tool Cable - UL-Certified, RoHS Compliant for Industrial Wiring
Product Overview
Copper TFFN/TFN Cable is a versatile, high-performance electrical cable designed for fixture wiring, machine tool applications, and appliance wiring. Engineered to meet stringent industry standards, this cable combines durability, flexibility, and safety for use in commercial, industrial, and residential environments. It is available in multiple configurations (TFFN, MTW, AWM) to suit diverse operational requirements.
Key Features
-
Voltage Rating: 600V for all applications.
-
Temperature Ratings:
-

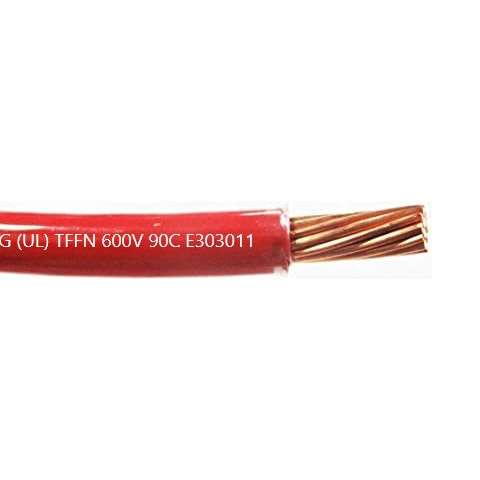

TFFN: Up to 90°C in dry locations.
-
MTW: Up to 60°C in wet/oil-exposed environments; 90°C in dry locations (with ampacity limited to 75°C per NFPA 79).
-
AWM: Up to 105°C in dry locations.
-
-
Flame Retardant: Meets UL flame-retardant standards for enhanced safety.
-

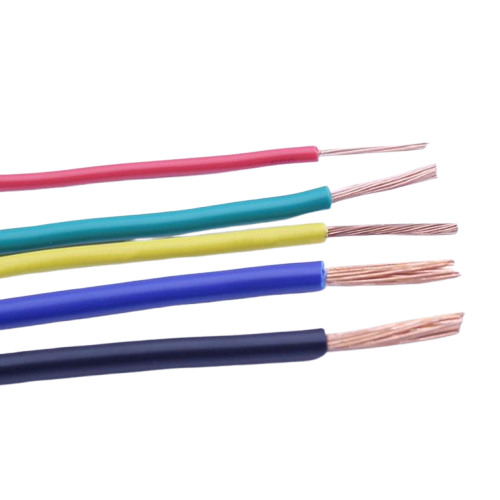

Color Options: Black, White, Red, Blue, Green, Yellow, Orange, Brown, Purple, Gray, Pink.
-
Compliance: RoHS/REACH compliant, ensuring environmental and regulatory adherence.

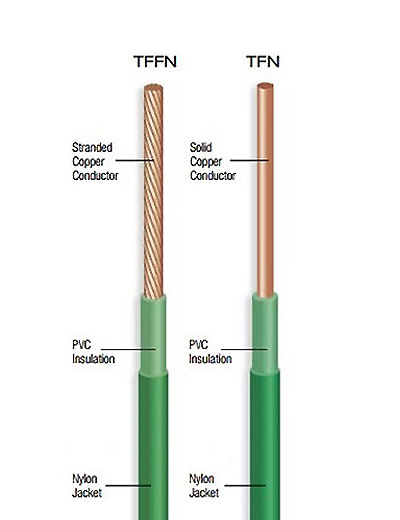

Construction Details
Conductor
-
Material: Uncoated copper per ASTM B3, B8, and B174.
-
Stranding: Flexible stranded design for ease of installation.
Insulation & Jacket
-
Insulation: Color-coded PVC (polyvinyl chloride) for heat and moisture resistance.
-
Outer Jacket: Clear nylon (polyamide) overlay for added mechanical protection and durability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | UL 66, UL 758, UL 1063; NEC NFPA 70 (2011); ASTM |
| Voltage Rating | 600V |
| Temperature Range | - TFFN: -40°C to 90°C (dry) |
| - MTW: -40°C to 60°C (wet) / 90°C (dry) | |
| - AWM: -40°C to 105°C (dry) | |
| Conductor Material | High-purity copper |
| Insulation Material | PVC + Nylon |
| Flame Rating | VW-1/FT1 |
Applications & Usage
-
Fixture Wiring: Ideal for lighting systems and commercial fixtures.
-
Machine Tools: Suitable for CNC machinery, industrial automation, and control panels.
-
Appliance Wiring: Used in HVAC systems, motors, and household appliances.
-
Wet/Dry Environments: MTW variant recommended for areas exposed to oil, coolant, or moisture.
Compliance & Standards
-
UL Certification: Compliant with UL 66, UL 758, and UL 1063.
-
NEC Alignment: Meets National Electrical Code (NFPA 70) 2011 Edition requirements.
-
Material Safety: RoHS/REACH compliant for hazardous substance control.
Engineering Selection Guide
-
Dry Locations: Opt for TFFN (90°C) or AWM (105°C) for high-temperature resistance.
-
Wet/Oily Environments: Choose MTW with a 60°C rating.
-
Flexibility Needs: Stranded copper design ensures easy routing in tight spaces.
