CHEPJ/NC Fire Resistant Marine Communication Cable
Product Overview
The CHEPJ/NC is a premium Fire Resistant and Low Smoke Halogen Free (LSHF) marine communication cable designed for the most critical safety circuits. It utilizes a robust Mica Glass Tape and EPR (Ethylene Propylene Rubber) dual-layer insulation system to ensure circuit integrity during fire, meeting the stringent IEC 60331 standard. Combined with a Cross-linked Polyolefin (SHF2) sheath, it offers superior fire safety, environmental resistance, and long-term reliability for essential systems on ships, offshore platforms, and in hazardous industrial plants.
Key Features & Benefits
-
Certified Fire Resistance: IEC 60331 compliant construction featuring Mica Glass Tape over EPR insulation, ensuring continued operation of vital alarm, communication, and control systems in fire conditions.
-
Comprehensive Safety Design: Integrates Fire Resistance (IEC 60331) with Halogen-Free (IEC 60754), Low Smoke (IEC 61034), and Flame Retardant (IEC 60332) properties for maximum personnel safety and asset protection.
-
Durable & Resilient Sheath: The Cross-linked Polyolefin (SHF2) outer sheath provides excellent thermal stability, chemical resistance, and mechanical durability in harsh environments.
-
Flexible Installation Options: Available in standard Black or other colors upon request for easy circuit identification and project specifications.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Standard Sheath Color: Black (Other colors available)

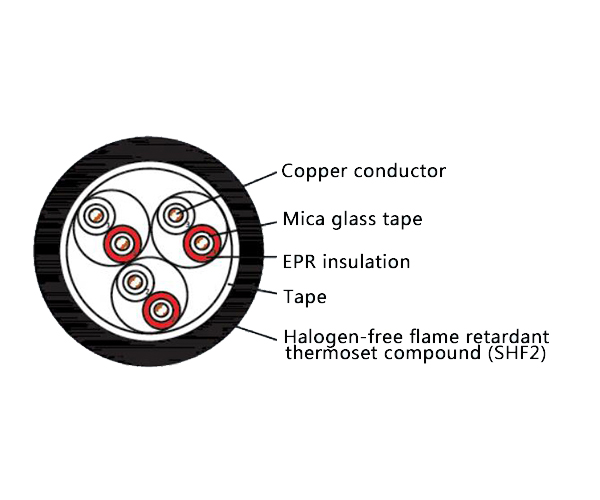

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured to meet the highest international marine and safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for critical applications where maintaining circuit integrity during a fire is essential:
-
Emergency and Safety Systems on marine vessels and offshore oil & gas platforms (e.g., fire alarm systems, emergency communications, engine control signals).
-
Vital telecommunication, instrumentation, and data processing circuits in power plants, chemical and petrochemical industries, metallurgy, and mining.
