CHJPJP95/SC Screened & Armored Marine Communication Cable
Product Overview
The CHJPJP95/SC is a high-performance, shielded and armored marine communication cable designed for critical applications requiring superior interference protection and mechanical durability. Featuring Cross-Linked Polyethylene (XLPE) insulation and a full Halogen-Free, Low Smoke Flame Retardant (LSHF) construction, it is engineered for the most demanding environments on ships, offshore platforms, and in heavy industries. This cable offers enhanced EMI/RFI shielding and physical protection, complying with the stringent IEC 60092 series of standards.
Key Features & Benefits
-
Superior Protection & Durability: Combination of a tinned copper braid or tape screen for electromagnetic compatibility (EMC) and a galvanized steel wire braid armor for robust mechanical protection against impact, crush, and rodent damage.
-
High-Performance Insulation: XLPE insulation provides excellent electrical properties, high thermal resistance (up to 90°C), and superior moisture and chemical resistance compared to standard PVC.
-
Maximum Safety Compliance: Full Low Smoke, Zero Halogen (LSZH/LSHF) design minimizes toxic/acidic gas emission (IEC 60754) and smoke density (IEC 61034) in a fire, while meeting stringent flame retardancy standards (IEC 60332-1 & -3-22).
-
All-Weather Construction: The cross-linked polyolefin (SHF2) inner and outer sheaths offer enhanced resistance to weathering, abrasion, oils, and chemicals.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

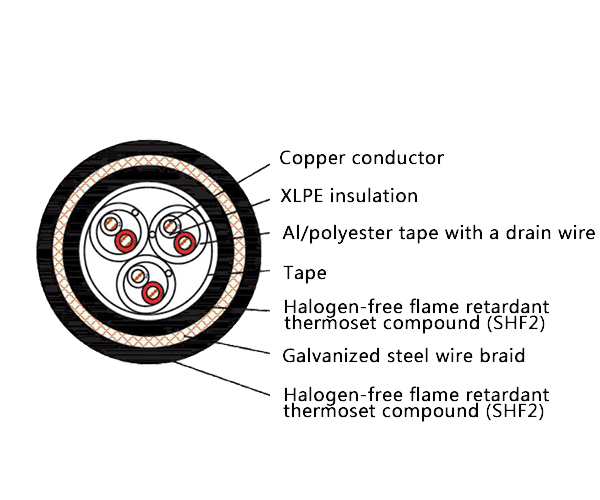

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminum/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for installations requiring enhanced signal integrity and physical protection:
-
Marine & Offshore: Telecommunication, instrumentation, and data processing systems on vessels, rigs, and platforms where interference and physical hazards are present.
-
Heavy Industry: Critical control and communication networks in power plants, chemical processing facilities, mining operations, and metallurgy plants with challenging EMC or mechanical conditions.
