Product Overview
The CHJVP92/SA is a rugged, armored and screened marine communication cable designed for durable performance in demanding telecommunication and data systems. It features reliable XLPE insulation, PVC sheaths, an electromagnetic screen, and a protective galvanized steel wire braid armor. This cable provides a robust combination of signal integrity, mechanical protection, and Flame Retardant safety (IEC 60332), making it a solid choice for general communication circuits in marine and industrial settings where heavy-duty protection is required.
Key Features & Benefits
-
Robust Mechanical Protection: The galvanized steel wire braid armor (Code 9) offers superior resistance against impact, crushing, and physical damage, ideal for exposed or high-risk installation routes.
-
Effective EMI Shielding & Signal Integrity: The integrated screen (tinned copper braid or Alu/Polyester tape) safeguards against electromagnetic interference (EMI), ensuring reliable data and signal transmission for sensitive equipment.
-
Proven Flame Retardant Safety: Certified to IEC 60332-1 and IEC 60332-3-22 for flame retardant performance, inhibiting fire spread in both single and bunched cable installations.
-
Durable & Cost-Effective: The XLPE insulation provides excellent electrical and thermal properties (90°C), while the double-layer PVC sheath offers proven environmental and mechanical protection at a competitive cost.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

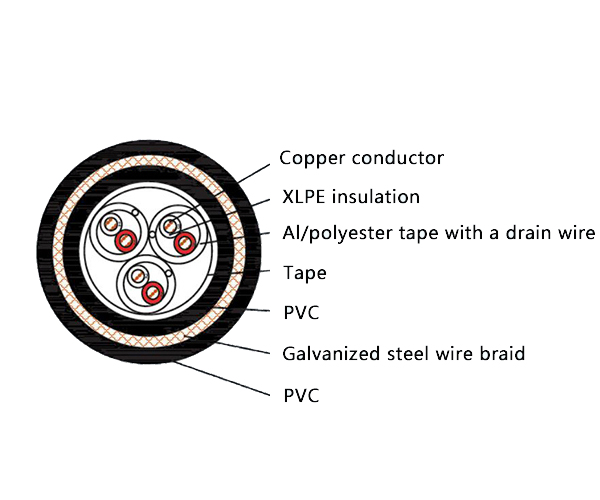

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in compliance with key international standards for marine use:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is designed for robust communication and data systems in:
-
General telecommunication, instrumentation, and computer networks on marine vessels and offshore constructions, especially for exposed or vulnerable cable runs.
-
Industrial control and communication circuits in plants such as power generation facilities, metallurgy, chemical industry, and mining, where both EMI protection and mechanical durability are needed.
