Product Overview
The CHJPFP/NC is a Fire Resistant, Low Smoke Halogen Free (LSHF) marine communication cable designed for critical telecommunication, instrumentation, and data systems where circuit integrity and personnel safety during a fire are paramount. It features a fire-survivable mica glass tape + XLPE insulation system, an overall electromagnetic screen, and a Low Smoke Halogen Free (SHF1) thermoplastic polyolefin outer sheath. This non-armored, flexible cable is engineered to maintain signal transmission under fire conditions while minimizing toxic fumes and smoke, making it ideal for safe and reliable installations in marine vessels, offshore platforms, and industrial plants, in full compliance with IEC 60092 and IEC 60331 standards.
Key Features & Benefits
-
Guaranteed Fire Survival (IEC 60331): The mica glass tape + XLPE insulation (Code J) is designed to maintain circuit integrity and continue operating during a fire, ensuring that emergency communications, alarms, and control signals remain functional.
-
Enhanced Personnel Safety (LSHF/NC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties drastically reduce the emission of toxic, corrosive gases and smoke opacity, significantly improving safety for evacuation and firefighting in confined spaces.
-
Effective EMI/RFI Shielding: The integrated overall screen (Code P) protects sensitive data and communication signals from electromagnetic and radio frequency interference, ensuring signal clarity.
-
Flexible & Lightweight: The non-armored design with an LSHF sheath makes this cable highly flexible and easier to install in conduits, trays, and confined spaces compared to armored cables.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

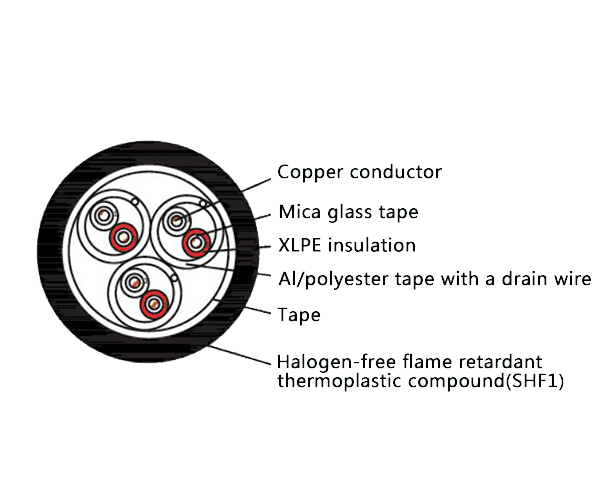

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for critical fixed wiring within protected environments where fire survival and signal integrity are required:
-
Emergency telecommunication, alarm systems, instrumentation, and computer networks within panels, conduits, or protected pathways on ships, oil & gas platforms, and offshore structures.
-
Vital data and control circuits in power plants, chemical industry, metallurgy, and mining that require a fire-resistant, LSHF, and EMI-protected cabling solution.
