Product Overview
The CHJ82/SA is a flexible, flame-retardant marine communication cable designed for reliable telecommunication, instrumentation, and data transmission where ease of installation is a priority. It features durable XLPE (Cross-linked Polyethylene) insulation, a flexible tinned copper wire braid armor, and a protective PVC outer sheath. Certified for SA-grade flame retardancy in bunched installations, this cable offers a practical balance of mechanical protection, flexibility, and fire safety for communication systems on ships, offshore platforms, and in industrial environments, in compliance with IEC 60092 standards.
Key Features & Benefits
-
Certified Flame Retardant Safety: Rated for SA-grade Flame Retardancy (IEC 60332-1 & -3-22) for performance in bunched cable installations, helping to inhibit the spread of fire.
-
Flexible & Easy to Install: The tinned copper wire braid armor (Code 8) provides effective mechanical protection while ensuring high flexibility, making the cable easier to route and install in confined spaces or complex pathways.
-
Durable & Cost-Effective Sheathing: A tough PVC outer sheath (Code 2) offers reliable resistance to abrasion, moisture, and general environmental wear.
-
Reliable Electrical Performance: XLPE insulation ensures stable electrical properties and thermal endurance at a continuous 90°C operating temperature.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

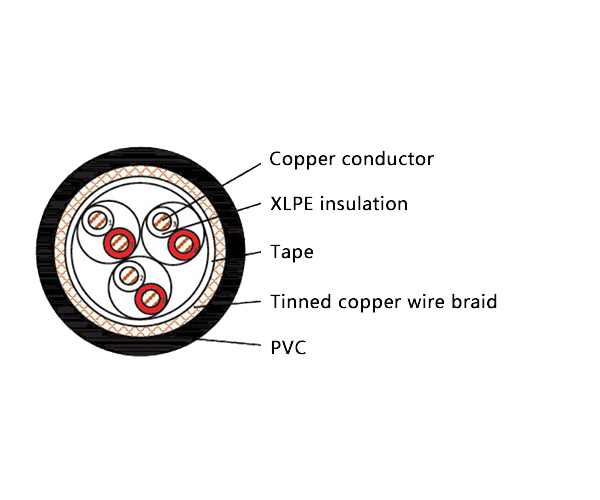

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is designed for:
-
Telecommunication, instrumentation, computer, and information processing systems on marine vessels and offshore constructions (e.g., oil platforms).
-
General communication and control wiring in industries such as power plants, chemical processing, metallurgy, and mining.
