Product Overview
The CHJP95/SC is a premium-grade Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable engineered for critical data and signal transmission systems where superior durability and safety are required. It features XLPE (Cross-linked Polyethylene) insulation, an overall electromagnetic screen, heavy-duty galvanized steel wire armor, and a high-performance cross-linked polyolefin (SHF2) outer sheath. This cable provides exceptional fire safety, EMI protection, mechanical resilience, and environmental resistance, making it ideal for demanding telecommunication and instrumentation applications on ships, offshore platforms, and in industrial plants, in full compliance with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties significantly reduce toxic fume emission and smoke density, enhancing safety during evacuation. The cable meets stringent Flame Retardant (IEC 60332-1 & -3-22) requirements.
-
High-Performance SHF2 Sheath: The cross-linked polyolefin (SHF2) sheath (Code 5) offers superior thermal stability, chemical resistance, and mechanical strength compared to standard thermoplastics, providing excellent long-term environmental protection.
-
Effective EMI Shielding & Mechanical Durability: The integrated overall screen (Code P) ensures protection against electromagnetic interference for signal integrity. The galvanized steel wire braid armor (Code 9) provides maximum resistance against impact and crushing forces.
-
Reliable Electrical Performance: XLPE insulation ensures excellent dielectric properties, thermal endurance, and moisture resistance for stable performance at a continuous 90°C operating temperature.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

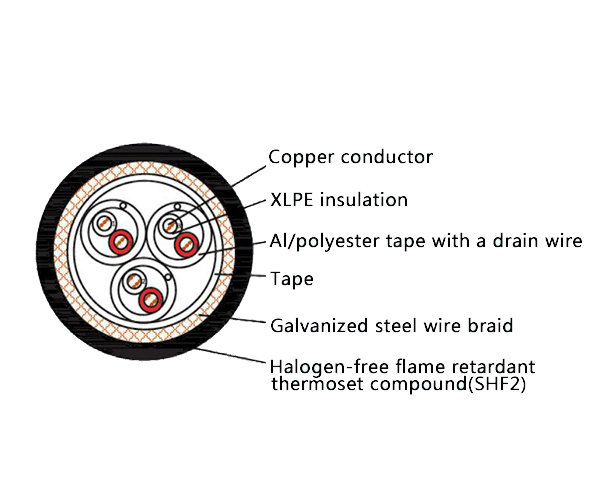

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for:
-
Telecommunication, instrumentation, computer, and information processing systems on ships, oil & gas platforms, and offshore structures.
-
Critical data and control networks in demanding industrial sectors such as power generation, chemical processing, metallurgy, and mining.
