Product Overview
The CHJP96/SC is a high-performance Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable designed for reliable data and signal transmission in critical systems. It features XLPE (Cross-linked Polyethylene) insulation, an overall electromagnetic screen, heavy-duty galvanized steel wire armor, and a LSHF thermoplastic polyolefin (SHF1) outer sheath. This construction offers superior fire safety, excellent EMI protection, and robust mechanical durability for telecommunication, instrumentation, and data processing systems on ships, offshore platforms, and in demanding industrial environments, fully complying with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fume emission, improving visibility and safety during evacuation. The cable meets stringent Flame Retardant (IEC 60332-1 & -3-22) requirements.
-
Effective EMI Shielding & Signal Integrity: The integrated overall screen (Code P) provides reliable protection against electromagnetic interference (EMI), ensuring clear and stable signal transmission for sensitive communication and computer systems.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (Code 9) offers superior resistance against impact, crushing, and mechanical damage, ideal for exposed or high-risk installation areas.
-
Durable & Reliable: XLPE insulation ensures excellent electrical properties, thermal stability, and moisture resistance at a continuous operating temperature of 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

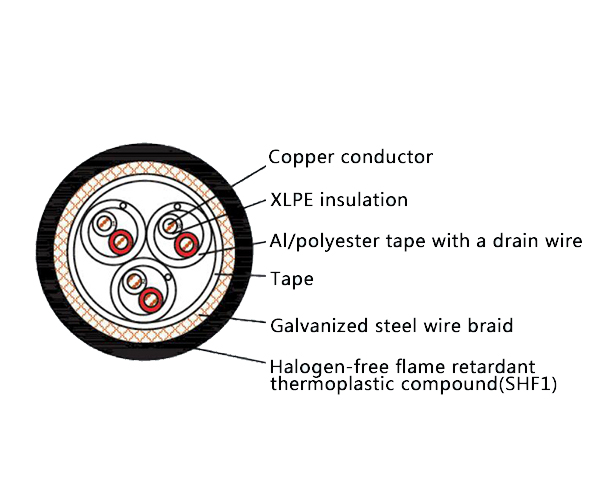

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for demanding fixed installations requiring high data integrity and safety:
-
Telecommunication, instrumentation, computer, and information processing systems on ships, oil & gas platforms, and offshore structures.
-
Critical data and control networks in power plants, chemical processing, metallurgy, and mining industries.
