Product Overview
The CHJ92/NA is a robust Fire Resistant marine communication cable designed to ensure the continued operation of critical systems during fire emergencies. It features a fire-survivable mica glass tape + XLPE insulation system, heavy-duty galvanized steel wire armor, and a protective PVC outer sheath. Engineered to meet the IEC 60331 standard for fire resistance, this cable is essential for maintaining vital telecommunication, data, and control signal integrity on vessels, offshore platforms, and in industrial plants where circuit survival under fire conditions is a critical requirement.
Key Features & Benefits
-
Critical Fire Resistance (IEC 60331): The mica glass tape + XLPE insulation (Code J) is specifically designed to maintain circuit integrity and continue operating under direct flame, ensuring that emergency communications, alarms, and control signals remain active.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides superior resistance against impact, crushing, and physical damage, making it suitable for exposed or high-risk installation areas.
-
Durable & Cost-Effective Sheathing: A tough PVC outer sheath (Code 2) offers reliable protection against abrasion, moisture, oils, and general environmental factors, ensuring long-term durability.
-
Flame Retardant: Complies with Flame Retardant standards (IEC 60332-1 & -3-22) to inhibit the spread of fire along the cable.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

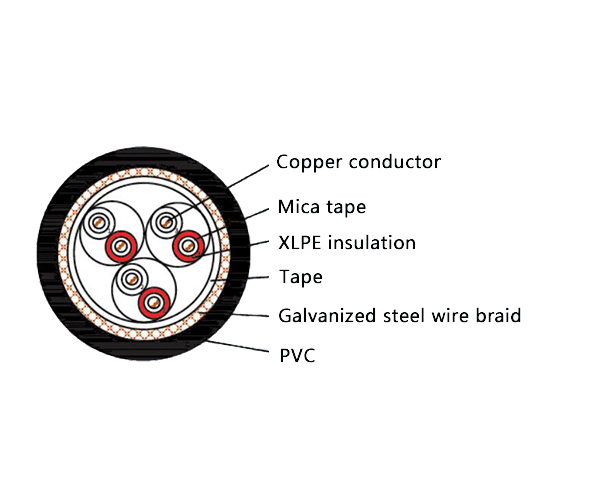

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is designed for critical fixed installations where fire survival is the primary requirement:
-
Emergency telecommunication, public address, alarm systems, and essential data networks on ships, oil & gas platforms, and offshore structures.
-
Vital control and communication circuits in power plants, chemical industry, metallurgy, and mining that require a fire-survivable and mechanically robust cabling solution.
