Product Overview
The CHJ96/NC is a Fire Resistant, Low Smoke Halogen Free (LSHF) marine communication cable engineered to maintain critical signal transmission during fire emergencies. It features a specialized mica glass tape + XLPE insulation system designed for circuit integrity under fire, heavy-duty galvanized steel wire armor for mechanical protection, and a LSHF thermoplastic polyolefin (SHF1) outer sheath. This cable is essential for ensuring the continuous operation of vital telecommunication and data systems on ships, offshore platforms, and in industrial plants, fully complying with IEC 60092 standards and the fire resistance requirement of IEC 60331.
Key Features & Benefits
-
Guaranteed Fire Survival & Circuit Integrity: The mica glass tape + XLPE insulation (Code J) is engineered to maintain circuit operation during a fire (IEC 60331), ensuring that emergency communications, alarms, and control signals remain functional in critical situations.
-
Enhanced Personnel Safety (LSHF/NC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) construction minimizes the emission of toxic, corrosive fumes and reduces smoke density, facilitating safer evacuation and firefighting in confined spaces. It is also Flame Retardant (IEC 60332).
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides superior resistance against impact, crushing, and mechanical damage, ideal for exposed or high-risk installation areas.
-
Durable & Safe Sheathing: The Thermoplastic Polyolefin (SHF1) sheath (Code 6) provides robust environmental protection while maintaining the cable's LSHF safety properties.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

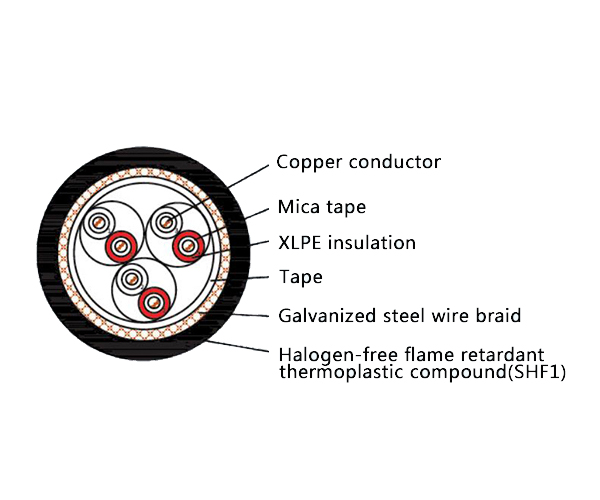

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for critical fixed installations where fire survival is the primary requirement:
-
Emergency telecommunication, public address, alarm systems, and essential data networks on ships, oil & gas platforms, and offshore structures.
-
Vital control and communication circuits in power plants, chemical industry, metallurgy, and mining that require a fire-survivable and mechanically robust cabling solution.
