Product Overview
The CKJPF80/SC is a Low Smoke Halogen Free (LSHF), Flame Retardant marine control cable engineered for critical power, lighting, and control systems. It combines enhanced fire safety with flexible mechanical protection in a streamlined, grounding-ready design. Featuring XLPE insulation, a tinned copper wire braid armor, and a single Thermoplastic Polyolefin (SHF1) inner sheath (no outer oversheath), it is ideal for installations where safety, flexibility, and reliable grounding are paramount. The cable fully complies with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fume emissions, significantly improving personnel safety and visibility during fire incidents in enclosed spaces.
-
Flexible Armor & Grounding-Ready: The tinned copper wire braid armor provides effective protection against abrasion, cutting, and vibration while offering greater installation flexibility than steel armor. The exposed armor facilitates direct and reliable grounding connections in panels or trays.
-
Streamlined & Durable: The single SHF1 sheath provides good environmental protection. The absence of an outer oversheath results in a compact design, simplifying installation where the armor is utilized as the grounding path.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

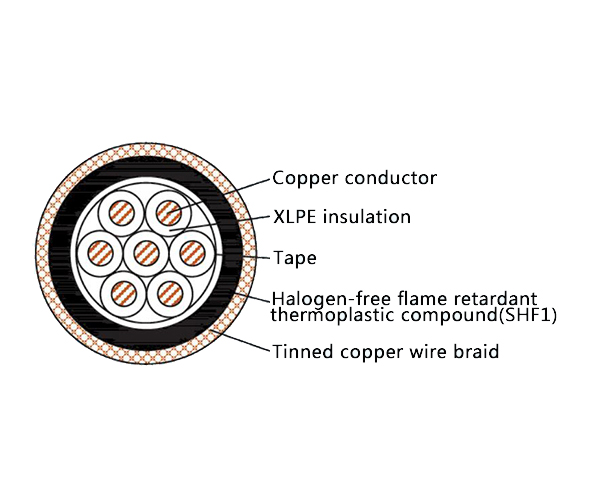

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for circuits that require fire safety, mechanical protection, flexibility, and a dedicated grounding path.
-
Marine & Offshore: Control, instrumentation, and auxiliary power systems within ship control panels, machinery spaces, and on offshore platforms, especially where LSHF regulations apply and flexible, grounded armor is required.
-
Industrial Control Panels: Wiring for industrial control panels, motor control centers (MCCs), and automation systems where a grounded shield is needed for safety and the cable must be flexible for cabinet installation.
