Product Overview
The CKJVP80/SA is a high-performance marine control cable designed for applications requiring exceptional electromagnetic interference (EMI) protection combined with flexible mechanical strength in a streamlined build. It features XLPE insulation, an integrated electrical screen, and a protective tinned copper wire braid armor, all contained within a single PVC inner sheath (without an outer oversheath). This design is ideal for installations where superior EMI shielding and flexible armor protection are critical, and where the armor layer is intended for direct grounding, fully complying with IEC 60092 flame retardant standards.
Key Features & Benefits
-
Combined Shielding & Flexible Armor: Integrates a dedicated EMI/RFI screen (tinned copper braid or Alu/Polyester tape) with a tinned copper wire braid armor. This dual-layer design provides excellent interference protection and robust, flexible mechanical defense against abrasion and impact, while facilitating easy armor grounding.
-
Streamlined, Service-Friendly Construction: The single-layer PVC inner sheath offers primary containment. The absence of an outer oversheath provides a compact profile and direct access to the conductive armor for grounding connections, simplifying installation in control panels and grounded trays.
-
Reliable Performance: Utilizes high-temperature XLPE insulation (rated 90°C) for stable electrical performance and durability. The cable meets IEC 60332 standards for flame retardancy in bunched installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
Construction Details

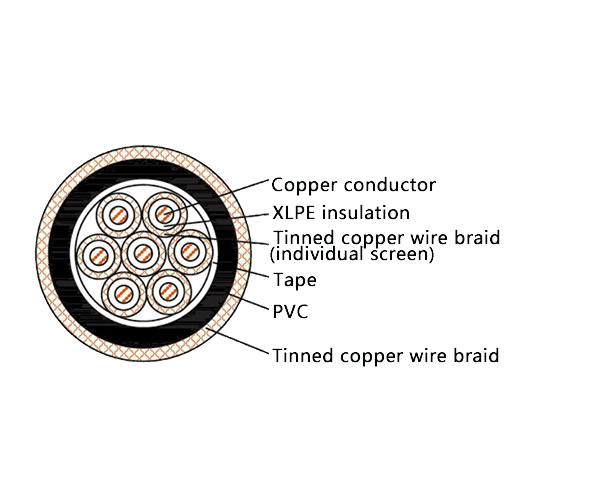

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is specified for control and instrumentation circuits where signal integrity, flexible mechanical protection, and direct armor grounding are key requirements:
-
Marine & Offshore: Control panels, automation systems, and navigation equipment on ships and offshore platforms, particularly within enclosed panels or grounded trays where the armor serves as the primary grounding path.
-
Industrial Facilities: Sensitive control wiring for PLCs, motor starters, and instrumentation in power generation, chemical plants, and manufacturing, especially in electrically noisy environments where a grounded shield is necessary.
