Product Overview
The CKJVP82/SA is a premium marine control cable engineered for critical applications that demand both superior signal integrity and reliable mechanical protection. It features a robust construction combining XLPE insulation, an effective electrical screen, and a flexible tinned copper wire braid armor, all protected by a durable double-layer PVC sheath. This design ensures excellent protection against electromagnetic interference (EMI), physical damage, and environmental factors, making it ideal for sensitive power, lighting, and control systems in harsh marine and industrial settings, in full compliance with IEC 60092 standards.
Key Features & Benefits
-
Dual-Layer Shielding & Protection: Integrates a dedicated EMI/RFI screening layer (tinned copper braid or Alu/Polyester tape) for clean signal transmission, plus a tinned copper wire braid armor that provides effective mechanical protection against abrasion and cutting while offering additional shielding. The double-layer PVC sheath ensures excellent overall durability and resistance to moisture, oils, and chemicals.
-
Flexible & Durable: The copper wire armor offers greater flexibility compared to steel armor, facilitating easier installation in complex cable runs. Combined with high-temperature XLPE insulation (90°C), it delivers long-term reliability.
-
Certified Safety Performance: Meets IEC 60332 standards for flame retardancy, ensuring safe performance even when cables are installed in bunches.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

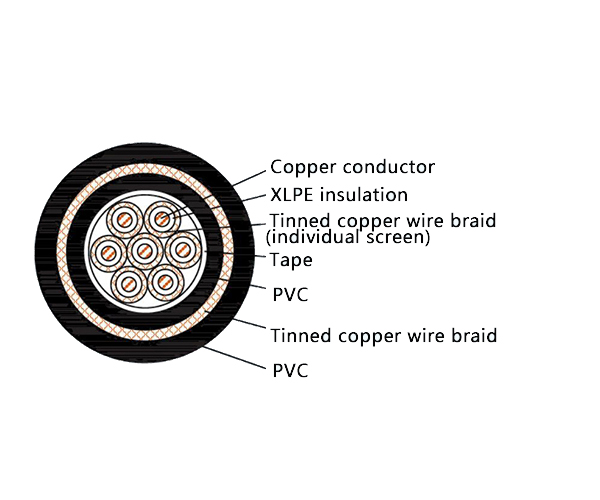

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is ideally suited for environments where both signal clarity and robust, flexible protection are required:
-
Marine & Offshore: Control and instrumentation panels, navigation systems, communication links, and auxiliary power circuits on ships, oil rigs, and offshore platforms, especially in areas with high EMI and where cable flexibility is important.
-
Industrial Automation: Sensitive control systems, data acquisition, and power supply circuits in power plants, chemical processing facilities, and manufacturing plants where reliable operation in electrically noisy and physically demanding conditions is critical.
