Product Overview
The CKJPF80/NC is a high-performance Fire Resistant marine control cable designed for essential power, lighting, and control circuits where maintaining operation during fire is critical. It features a core construction of XLPE insulation over a mica glass tape layer, providing circuit integrity under flame. Combined with Halogen-Free, Low Smoke (LSHF) properties and a tinned copper braid armor, this single-sheathed cable offers a reliable and safe solution for demanding fixed installations in marine and industrial settings, fully complying with IEC 60092 and key fire safety standards.
Key Features & Benefits
-
Certified Fire Resistance: Engineered with a mica glass tape barrier beneath XLPE insulation to maintain circuit continuity during a fire, meeting the stringent IEC 60331 standard for fire resistance.
-
Comprehensive Safety Design: Offers Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) emission for increased personnel safety, alongside high Flame Retardancy (IEC 60332). The tinned copper braid armor provides robust mechanical protection and effective protection against electromagnetic interference.
-
Durable & Reliable: XLPE insulation ensures excellent thermal stability (rated for 90°C), electrical properties, and aging resistance. The overall design is tailored for longevity in harsh environments.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

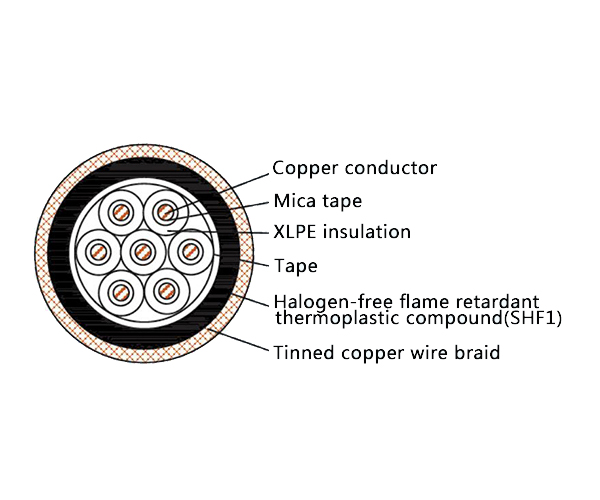

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Halogen-free Flame Retardant Thermoplastic Compound (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical systems where circuit integrity is paramount for safety and continued operation:
-
Marine & Offshore: Control, alarm, and vital auxiliary power circuits on ships, oil platforms, and offshore structures.
-
Heavy Industry: Essential control and instrumentation loops in power generation facilities, chemical plants, mining operations, and metallurgical plants where fire-resistant cabling is required.
