Product Overview
The CKJPF86/NC is a premium-grade Fire Resistant marine control cable designed for critical power, lighting, and control circuits where circuit integrity must be maintained during a fire. It features a robust construction with XLPE insulation over a mica glass tape layer, double halogen-free sheaths, and copper braid armor, ensuring superior fire performance, mechanical protection, and safety in the most demanding marine and industrial environments. It complies with the stringent IEC 60092 series and key fire safety standards.
Key Features & Benefits
-
Superior Fire Resistance: Constructed with a mica glass tape barrier and XLPE insulation, the cable is engineered to maintain circuit integrity and continue functioning for a specified period under direct flame, meeting IEC 60331 requirements.
-
Enhanced Safety & Protection: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fumes. The cable also meets high Flame Retardant (IEC 60332) standards. The double-layer SHF1 sheath and tinned copper braid armor provide excellent mechanical, chemical, and moisture protection, along with effective EMI shielding.
-
Robust Construction for Harsh Environments: The combination of XLPE insulation (90°C rating), durable sheaths, and flexible armor makes this cable ideal for fixed installations exposed to challenging conditions on ships, offshore platforms, and in heavy industry.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

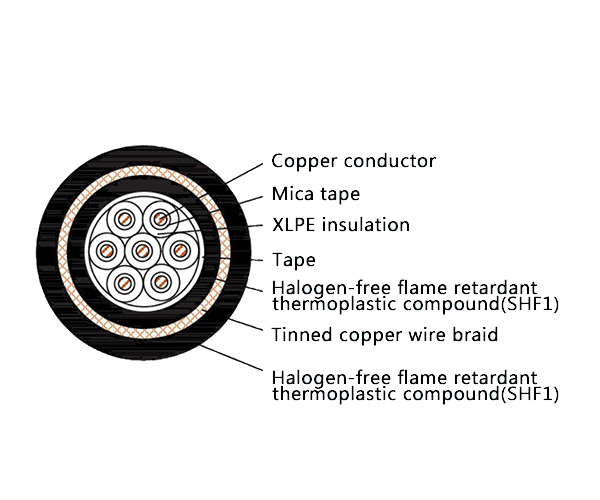

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Halogen-free Flame Retardant Thermoplastic Compound (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Halogen-free Flame Retardant Thermoplastic Compound (SHF1) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for vital systems where operational continuity during fire is essential:
-
Marine & Offshore: Power supply, lighting, control, and alarm systems on ships, oil rigs, and offshore platforms.
-
Critical Industrial Infrastructure: Control and automation circuits in power plants, chemical processing facilities, mining operations, and metallurgy plants where fire resistance is mandated for safety and asset protection.
