Product Overview
The CJPJR95/NC represents the ultimate in safety and durability for marine flexible power cables. It is a premium halogen-free, low-smoke, fire-resistant cable engineered for the most critical circuits where maintaining operation during a fire, withstanding extreme physical stress, and performing in high ambient temperatures are all essential. This cable combines a certified fire-resistant mica/XLPE core, a fully cross-linked polyolefin (SHF2) dual-sheath system, and galvanized steel wire armor to deliver an uncompromising solution for essential safety and power systems in the most severe marine and industrial environments.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Sheath Material (SHF2) Temperature Rating: Up to 105°C (Typical)
-
Conductor: Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

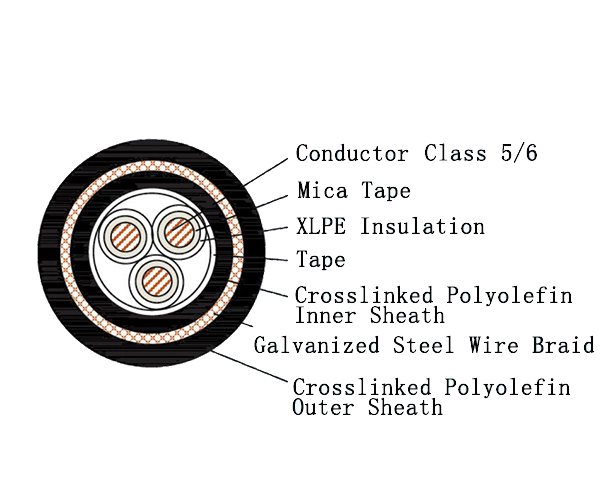

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin(SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin(SHF2) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The mica glass tape and XLPE insulation system ensures the cable maintains circuit integrity and continues to operate for a specified duration under direct flame, which is non-negotiable for life-safety and emergency circuits.
-
Superior High-Temperature Sheath System: Features a complete dual-sheath system (inner and outer) made of cross-linked polyolefin (SHF2). This material provides excellent thermal stability, deformation resistance, and longevity in elevated ambient temperature environments.
-
Maximum Mechanical & Environmental Protection: The galvanized steel wire braid armor offers supreme resistance to crushing, impact, and tensile stress. The tough, cross-linked outer sheath fully encapsulates the armor, providing an additional barrier against moisture, chemicals, abrasion, and corrosion.
-
Comprehensive Fire Safety Package: Integrates the highest safety standards: Fire Resistance (IEC 60331), Flame Retardancy (IEC 60332), zero halogen emission (IEC 60754), and low smoke density (IEC 61034) for maximum personnel safety and asset protection during a fire.
Standards & Compliance
This cable is manufactured in strict compliance with the highest international marine and fire safety standards:
-
IEC 60092-350, 353 (General construction and armor)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for the most critical, physically exposed, and thermally challenging safety circuits:
-
Marine & Offshore: Vital power feeds to emergency generators and fire pumps, critical alarm and control circuits, and essential systems located in engine rooms, on exposed decks, or in other high-temperature, high-risk areas on passenger ships, naval vessels, and offshore platforms.
-
Critical Infrastructure & Heavy Industry: Safety-critical wiring in power plants, chemical processing facilities, tunnels, and heavy industrial settings where regulations demand certified fire-resistant cabling with both enhanced temperature resistance for the sheath and the highest level of mechanical protection.
