Product Overview
The CJPFR96/NC represents the highest grade of safety and durability in marine flexible power cables. It is a halogen-free, low-smoke, fire-resistant cable designed for the most critical circuits where maintaining operation during a fire and withstanding extreme physical stress are both essential. Featuring a mica/XLPE fire-resistant insulation system, a full thermoplastic polyolefin (SHF1) dual-sheath, and galvanized steel wire armor, it provides an uncompromising solution for emergency power, lighting, and control systems in the most demanding marine and industrial environments.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

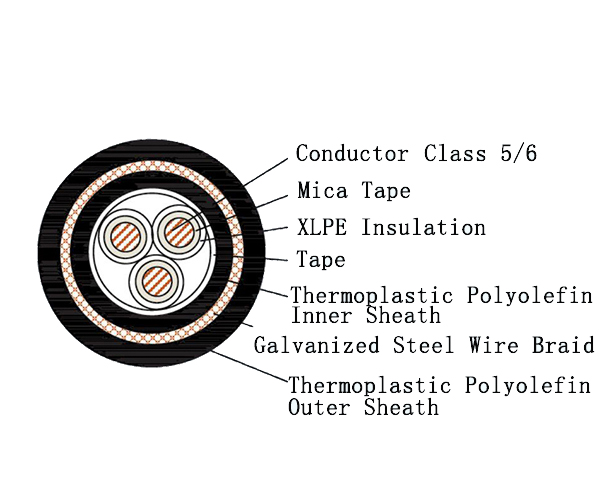

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin(SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The core insulation system (mica glass tape + XLPE) is specifically engineered to maintain circuit integrity and continue functioning for a defined period under direct flame, which is paramount for life-safety and emergency systems.
-
Maximum Mechanical & Environmental Protection: The combination of galvanized steel wire braid armor and a full outer sheath provides the ultimate defense against crushing, impact, abrasion, moisture, oils, and chemicals, ensuring the fire-resistant core is fully protected in the harshest conditions.
-
Comprehensive Fire Safety Package: Integrates the highest safety standards: Fire Resistance (IEC 60331), Flame Retardancy (IEC 60332), zero halogen emission (IEC 60754), and low smoke density (IEC 61034) for maximum personnel safety and equipment protection during a fire.
-
Enhanced Durability & Longevity: The outer sheath protects the steel armor from corrosion and physical damage, significantly extending the service life of the cable in demanding installations.
-
Reliable Electrical Performance: Provides stable and reliable power transmission under normal operating conditions up to 90°C.
Standards & Compliance
This cable is manufactured in strict compliance with the highest international marine and fire safety standards:
-
IEC 60092-350, 353 (General construction and armor)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for the most critical and physically exposed safety circuits:
-
Marine & Offshore: Essential and emergency power feeds (e.g., to emergency generators, fire pumps), critical alarm and control circuits, and emergency lighting systems on passenger ships, naval vessels, and offshore oil & gas platforms, especially in exposed deck areas or engine rooms.
-
Critical Infrastructure & Heavy Industry: Safety-critical wiring in power plants, chemical processing facilities, tunnels, mining operations, and any application where regulations demand both certified fire-resistant cabling and the highest level of mechanical protection.
