CEF82/SA EPR Insulated Armored Marine Power Cable
Product Overview
CEF82/SA marine power cable features EPR insulation, copper wire braided armor, and protective PVC outer sheath, designed for reliable power transmission in demanding marine and offshore environments. Meets international marine standards for safety and performance.
Key Applications
-
Power, lighting and control systems of offshore and marine structures
-
Oil platforms and marine vessels
-
Metallurgy, chemical industry applications
-
Power plants and mining industry
-
Industrial applications requiring flame retardant cables
Compliance & Standards
-
IEC 60092-350, 353 - Marine cable design standards
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 - Flame retardant (single cable)
-
IEC 60332-3-22 - Flame retardant (bunched cables)

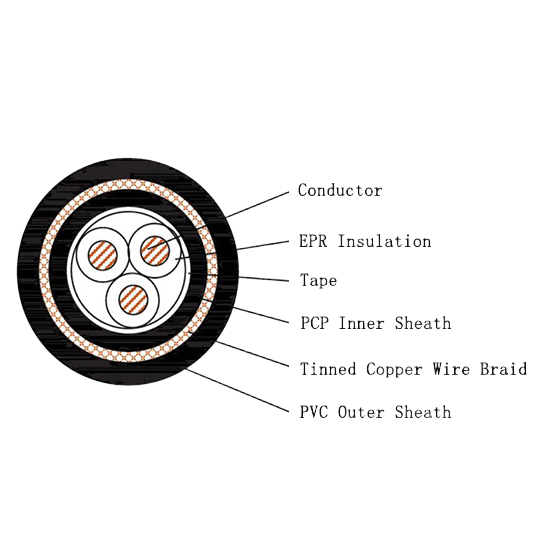

Cable Construction & Coding
| Item | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Inner Sheath | F | PCP |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1kV
-
Working Temperature: 90℃
-
Cross Section Range: 0.75mm² to 300mm²
-
Number of Cores: 1 to 37 cores
-
Armor Type: Tinned/Plain Copper Wire Braided
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Inner Sheath Material: PCP
-
Outer Sheath Material: PVC
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3-22 compliant
