Product Overview
Aluminium Conductor Wind Cable is specifically engineered for fixed routing power lines in wind tower installations, providing a cost-effective and reliable solution for power distribution within wind turbine structures. Featuring aluminum conductors and durable PVC construction, this cable delivers excellent performance while offering significant weight and cost advantages for wind energy applications.
Key Features & Benefits
-
Cost-Effective Solution: Aluminum conductors provide significant cost savings compared to copper alternatives
-
Weight Reduction: Aluminum construction offers substantial weight savings for easier installation and structural benefits
-
Wind Tower Optimized: Specifically designed for fixed routing installations in wind turbine structures
-
Durable PVC Construction: PVC insulation and outer sheath provide reliable environmental protection
-
Standard Compliance: Meets industry standards for wind power applications
-
Easy Installation: Optimized bending radius and mechanical properties facilitate straightforward installation
Applications
Fixed routing applications in wind energy systems:
-
Wind Tower Power Distribution: Fixed routing power lines within wind turbine structures
-
Wind Farm Installations: Power distribution in both onshore and offshore wind energy projects
-
Tower Internal Wiring: Electrical systems inside wind turbine towers
-
Fixed Installation Systems: Applications where cables remain in permanent positions
-
Renewable Energy Projects: Various wind power generation facilities

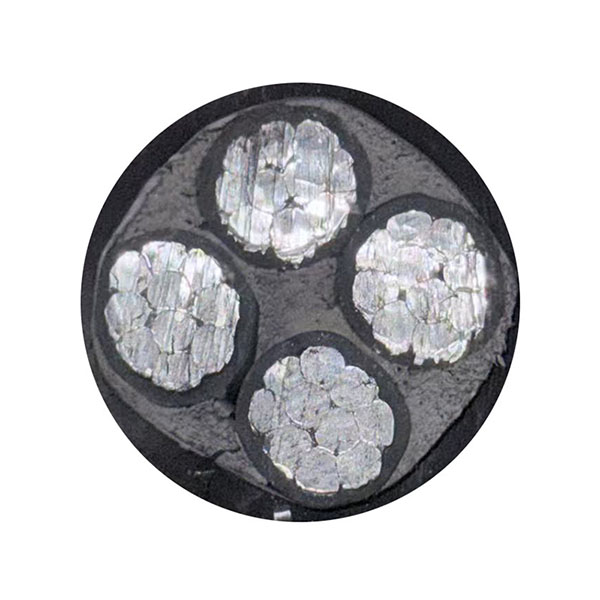

Construction
Efficient Construction for Wind Applications:
-
Conductor: Aluminum
-
Core Insulation: PVC
-
Outer Sheath: PVC
Technical Data
Performance Specifications:
-
Rated Voltage: 0.6/1kV
-
Test Voltage: 4kV
-
Temperature Range:
-
Fixed: -30°C to +70°C
-
Flexing: -5°C to +50°C
-
-
Minimum Bending Radius: 12 × Cable Diameter (Fixed installation)
-
Maximum Tensile Load: 30 N/mm²
Product Specifications
Detailed Product List:
| Cable Size | Outer Diameter | Weight |
|---|---|---|
| No. × mm² | mm | kg/km |
| 4×70 | 34.2 | 1730 |
| 4×95 | 38.6 | 2205 |
| 4×120 | 41.9 | 2655 |
| 4×150 | 45.6 | 3150 |
| 4×185 | 50.8 | 3925 |
| 4×240 | 59.6 | 4880 |
Key Advantages
-
Economic Efficiency: Aluminum conductors provide significant cost savings while maintaining reliable performance
-
Reduced Weight: Lighter construction simplifies installation and reduces structural load on wind towers
-
Proven Reliability: Designed specifically for the demanding requirements of wind power applications
-
Environmental Resistance: Suitable for the temperature variations encountered in wind energy environments
-
Mechanical Durability: Withstands tensile loads up to 30 N/mm² for secure installation
-
Optimized Design: Balanced electrical and mechanical properties for wind tower fixed routing applications
-
Standard Compliance: Manufactured to meet relevant industry standards for wind power cables
