BFOU(i&c) 250V Offshore Instrumentation Cable | Fire Resistant | Dual Screened | NEK 606

NEK 606 Offshore Instrumentation and Signal Cable28
Description

Product Overview

The BFOU(i&c) 250V Offshore Instrumentation Cable represents the pinnacle of fire-resistant signal transmission technology for critical offshore applications. Featuring advanced dual screening technology and mica glass tape fire protection, this cable delivers unparalleled performance in the most demanding marine environments while ensuring continuous circuit integrity during emergency situations.

Key Features & Benefits

  • Advanced Dual Screening: Individual pair screening plus collective overall screening for maximum EMI protection

  • Superior Fire Resistance: Mica glass tape construction maintains circuit integrity during fire emergencies

  • Enhanced Environmental Protection: Optional Mud resistant sheath for harsh offshore drilling conditions

  • Complete Safety System: Fire resistant, low smoke, and halogen-free properties ensure maximum personnel safety

  • Robust Mechanical Design: Tinned copper braid armour provides exceptional durability and reliable grounding

  • Flexible Sheath Options: Available with SHF2 or Mud resistant sheath to suit different application requirements

Applications

Critical signal transmission systems where fire integrity and signal quality are paramount:

  • Emergency Safety Systems: Fire and gas detection, emergency shutdown circuits

  • Critical Process Control: Safety interlocks, alarm systems, and emergency communications

  • High-Precision Instrumentation: Sensitive sensor networks and measurement devices

  • Drilling & Production Platforms: Jack-up rigs, semi-submersibles, FPSO vessels, and fixed platforms

  • Hazardous Area Applications: Classified zones requiring fire-resistant and EMI-protected cabling

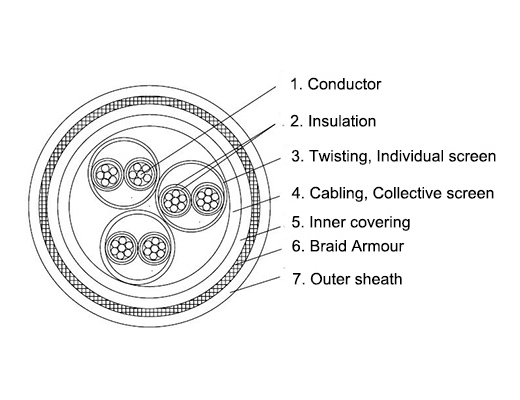

Construction

Advanced layered construction for maximum reliability:

  1. Conductor: Circular tinned stranded copper (0.75/1.5/2.5mm²) compliant with IEC 60228

  2. Insulation: Mica glass tape and Ethylene Propylene Rubber (EPR) for dual protection

  3. Individual Screening:

    • Color-coded cores twisted as pairs/triples

    • Individual screening with copper-backed polyester tape and copper drain wire

    • Each pair/triple wrapped with polyester tape over screen

  4. Collective Screening:

    • Individually screened pairs laid up collectively

    • Overall screening with copper-backed polyester tape and tinned copper drain wire

  5. Inner Covering: Halogen-free flame retardant compound

  6. Braid Armour: Tinned copper wire braid manufactured per IEC 60092-350

  7. Outer Sheath: Halogen-free thermoset compound, Type SHF2 or SHF Mud

Specifications

  • Rated Voltage: 250V

  • Conductor Sizes: 0.75mm², 1.5mm², 2.5mm²

  • Fire Performance: Fire resistant (circuit integrity maintained)

  • Screening Type: Dual screening (individual + collective)

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Safety Features: Fire resistant, low smoke, halogen-free

  • Sheath Options: SHF2 or SHF Mud compound

  • Armour Type: Tinned copper braid

  • Temperature Rating: -40°C to +90°C operational

  • Installation: Suitable for all offshore installations including moving vessels
