Product Overview
Application:
H05VV-F cables are versatile light-duty power cables designed for indoor electrical connections in dry or damp environments. Commonly used for household appliances, extension cords, office equipment, and low-power industrial tools where flexibility and safety are paramount.
Compliance:
Manufactured to EN 50525-2-11 and harmonized standard HD 21.13 S2, ensuring EU-wide safety and performance compliance.

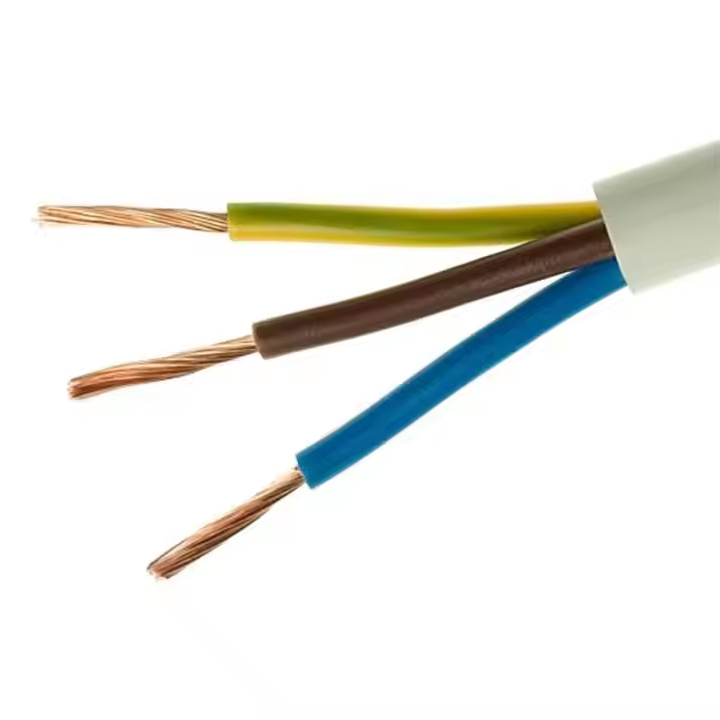

Construction & Material Properties
| Layer | Specification | Key Characteristics |
|---|---|---|
| Conductor | Stranded bare copper, Class 5 (IEC 60228) | High flexibility (≥70 bends @ 20×OD) |

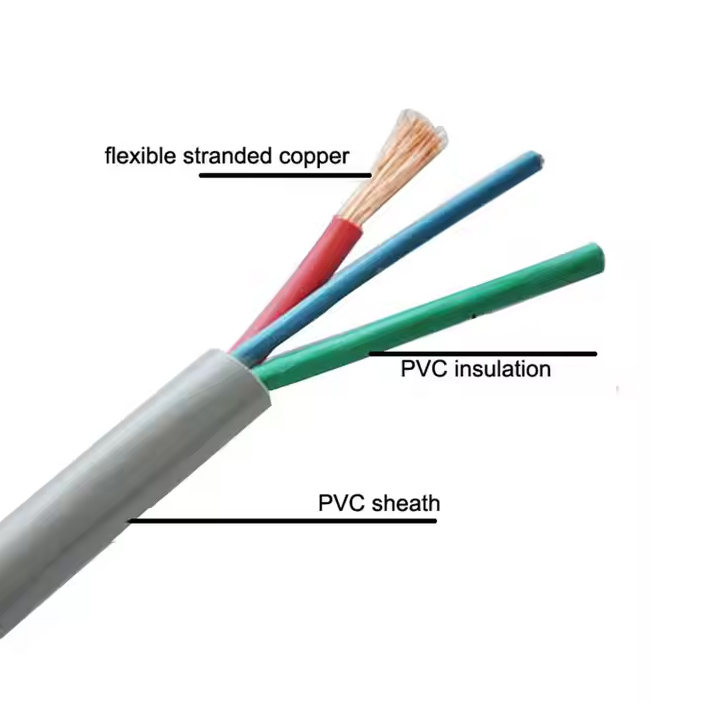

| Insulation | PVC Type TI1 | Flame-retardant, moisture-resistant |
| Sheath | PVC Type TM1 | Abrasion-resistant, lightweight protection |
| Colors | Brown/Blue/Yellow-Green or all Black | Phase/Neutral/Earth identification |
Technical Data
| Parameter | Value |
|---|---|
| Rated Voltage | 300/500V AC |
| Test Voltage | 2000V AC (5 min) |
| Operating Temp. | Fixed: –5°C to +40°C Flexing: +5°C to +40°C |
| Max. Conductor Temp. | +70°C (short circuit: +160°C) |
| Min. Bending Radius | Fixed: 4×OD Flexing: 20×OD |
| Insulation Resistance | ≥0.010 MΩ·km (20°C) |
Specification for H05VV-F Cable :
| Cores x Cross
section area |
Kind of
conductor |
Strands
conductor max. diameter |
Nominal Insulation
thickness |
Nominal sheath
thickness |
External diameter min-max. mm |
Conductor
resistance at 20 ℃ |
resistance of insulation at 70 ℃ |
| H05VV-F 2X0.75 | Class 5 | 0.21 | 0.6 | 0.8 | 5.7-7.2 | 26 | 0.011 |
| H05VV-F 2X1 | Class 5 | 0.21 | 0.6 | 0.8 | 5.9-7.5 | 19.5 | 0.01 |
| H05VV-F 2X1.5 | Class 5 | 0.26 | 0.7 | 0.8 | 6.8-8.6 | 13.5 | 0.01 |
| H05VV-F 2X2.5 | Class 5 | 0.26 | 0.8 | 1 | 8.4-10.6 | 7.98 | 0.009 |
| H05VV-F 2X4 | Class 5 | 0.31 | 0.8 | 1.1 | 9.7-12.1 | 4.95 | 0.007 |
| H05VV-F 3X0.75 | Class 5 | 0.21 | 0.6 | 0.8 | 6.0-7.6 | 26 | 0.011 |
| H05VV-F 3X1 | Class 5 | 0.21 | 0.6 | 0.8 | 6.3-8.0 | 19.5 | 0.01 |
| H05VV-F 3X1.5 | Class 5 | 0.26 | 0.7 | 0.9 | 7.4-9.4 | 13.5 | 0.01 |
| H05VV-F 3X2.5 | Class 5 | 0.26 | 0.8 | 1.1 | 9.2-11.4 | 7.98 | 0.009 |
| H05VV-F 3X4 | Class 5 | 0.31 | 0.8 | 1.2 | 10.5-13.1 | 4.95 | 0.007 |
| H05VV-F 4X0.75 | Class 5 | 0.21 | 0.6 | 0.8 | 6.6-8.3 | 26 | 0.011 |
| H05VV-F 4X1 | Class 5 | 0.21 | 0.6 | 0.8 | 7.1-9.0 | 19.5 | 0.01 |
| H05VV-F 4X1.5 | Class 5 | 0.26 | 0.7 | 1 | 8.4-10.5 | 13.5 | 0.01 |
| H05VV-F 4X2.5 | Class 5 | 0.26 | 0.8 | 1.1 | 10.1-12.5 | 7.98 | 0.009 |
| H05VV-F 4X4 | Class 5 | 0.31 | 0.8 | 1.2 | 11.5-14.3 | 4.95 | 0.007 |
| H05VV-F 5X0.75 | Class 5 | 0.21 | 0.6 | 0.9 | 7.4-9.3 | 26 | 0.011 |
| H05VV-F 5X1 | Class 5 | 0.21 | 0.6 | 0.9 | 7.8-9.8 | 19.5 | 0.01 |
| H05VV-F 5X1.5 | Class 5 | 0.26 | 0.7 | 1.1 | 9.3-11.6 | 13.5 | 0.01 |
| H05VV-F 5X2.5 | Class 5 | 0.26 | 0.8 | 1.2 | 11.2-13.9 | 7.98 | 0.009 |
| H05VV-F 5X4 | Class 5 | 0.31 | 0.8 | 1.4 | 13.0-16.1 | 4.95 | 0.007 |
Key Engineering Features
-
Optimized Flexibility
Class 5 stranded conductors withstand repeated bending without fracture. -
Enhanced Safety
Flame-retardant PVC (IEC 60332-1) with low smoke emission during combustion. -
Space-Efficient
Compact design simplifies routing in control panels and conduit systems. -
Environmental Resistance
Resists humidity, oils, and mechanical stress in light industrial settings.
Application Scenarios
-
Household Appliances: Vacuum cleaners, lamps, kitchen equipment
-
Workshop Tools: Drills, sanders, low-power saws
-
Office Infrastructure: Printers, computers, UPS systems
-
Temporary Installations: Exhibition booths, event power distribution
