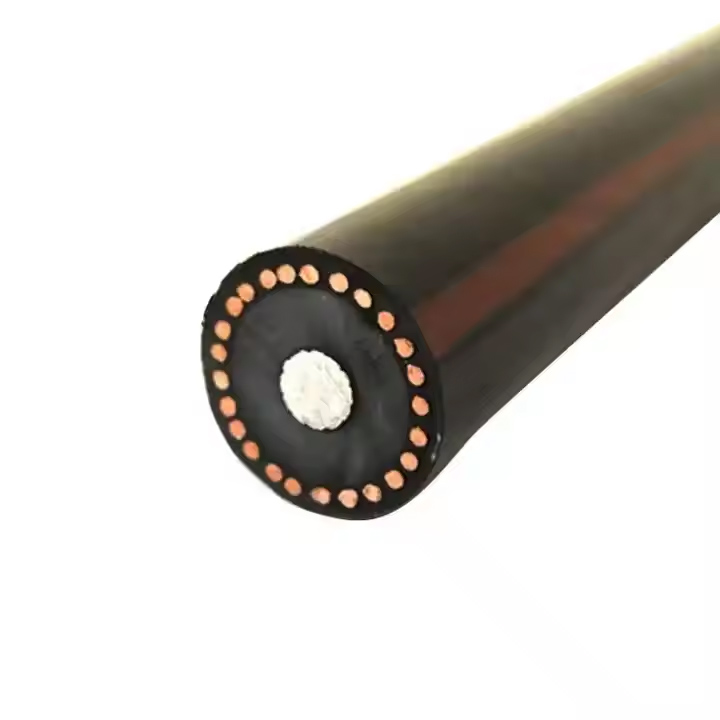

Medium Voltage Primary Underground Distribution (URD) Cable

Medium Voltage (MV) Cables27
Description
Specifications

Product Overview

Our Medium Voltage (MV) Primary Underground Distribution (URD) Cable is engineered for reliable power transmission in underground networks. Featuring Tree-Retardant Cross-Linked Polyethylene (TR-XLPE) insulation and robust concentric neutral construction, it delivers superior electrical performance, moisture resistance, and durability in harsh environments. Compliant with UL, ANSI/ICEA, and ASTM standards, it operates at 5–46 kV and temperatures up to 105°C.

Construction & Materials

Layer Material & Specifications
Conductor Solid/compacted stranded copper or aluminum per ASTM B3/B8/B230/B231.
Insulation Tree-retardant XLPE (TR-XLPE), 100% or 133% insulation level. Thickness: 8.76 mm (35 kV).
Neutral Concentric neutral of bare/tinned copper wires, helically applied over insulation shield.
Jacket UV-resistant, low-temperature flexible thermoplastic with three extruded ID stripes.
Waterproofing Optional water-blocking materials meeting ANSI/ICEA T-31-610 & T-34-664.

Key Features

  • Voltage Rating: 5 kV to 46 kV.

  • Temperature Rating: 90°C (standard) or 105°C (high-temp jacket).

  • Environmental Resistance: UV-resistant, -40°C cold impact tested, waterproof options.

  • Safety Compliance: Passes sunlight resistance, water tree resistance, and aging tests.

  • Installation Flexibility: Direct burial, underground ducts, and sunlight-exposed areas.

Applications

  • Underground power distribution in wet, damp, or dry locations.

  • Industrial complexes, urban networks, renewable energy projects.

  • Compatible with direct burial, duct banks, and exposed outdoor runs.

Standards & Certifications

  • Manufacturing Standards: UL 1072, ANSI/ICEA S-94-649, ANSI/ICEA S-97-682.

  • Test Compliance:

    • Sunlight resistance

    • -40°C cold impact

    • Insulation aging

    • Water tree resistance

    • Electrical performance (ANSI/ICEA T-31-610/T-34-664).

Product Classification & Ordering

  • Temperature Class:

    • MV-90 Series: 90°C operation.

    • MV-105 Series: 105°C operation (high-temp jacket).

  • Conductor Sizes: 1/0 AWG to 1250 MCM.

  • Customization: Neutral wire configurations, waterproofing, and ID markings.

Technical Specifications

MV-90 Series (90°C Operation)

Part No. Rated Voltage Size (AWG/MCM) No. of Wires Cond. Dia (mm) Insul. Thick (mm) Neutral Wires Neutral Dia (mm) Jacket Thick (mm) Cable Dia (mm)
MV-90 35kV 100% IL 1/0 19 9.0 8.76 16 1.63 1.4 36.0
MV-90 35kV 100% IL 1/0 19 9.0 8.76 11 1.63 1.4 36.0
MV-90 35kV 100% IL 1/0 19 9.0 8.76 8 1.63 1.4 36.0
MV-90 35kV 100% IL 1/0 19 9.0 8.76 6 1.63 1.4 36.0
MV-90 35kV 100% IL 2/0 19 10.1 8.76 13 2.05 1.4 39.2
MV-90 35kV 100% IL 2/0 19 10.1 8.76 7 2.05 1.4 39.2
MV-90 35kV 100% IL 2/0 19 10.1 8.76 10 1.63 1.4 38.3
MV-90 35kV 100% IL 2/0 19 10.1 8.76 7 1.63 1.4 38.3
MV-90 35kV 100% IL 3/0 19 11.4 8.76 16 2.05 1.4 40.4
MV-90 35kV 100% IL 3/0 19 11.4 8.76 8 2.05 1.4 40.4
MV-90 35kV 100% IL 3/0 19 11.4 8.76 9 1.63 1.4 39.6
MV-90 35kV 100% IL 4/0 19 12.8 8.76 20 2.05 1.4 41.8
MV-90 35kV 100% IL 4/0 19 12.8 8.76 15 2.05 1.4 41.8
MV-90 35kV 100% IL 4/0 19 12.8 8.76 10 2.05 1.4 41.8
MV-90 35kV 100% IL 4/0 19 12.8 8.76 16 1.63 1.4 41.0
MV-90 35kV 100% IL 4/0 19 12.8 8.76 11 1.63 1.4 41.0
MV-90 35kV 100% IL 250 37 13.9 8.76 13 1.63 2.05 43.4
MV-90 35kV 100% IL 350 37 16.5 8.76 11 2.05 2.05 46.8
MV-90 35kV 100% IL 500 37 19.6 8.76 16 2.05 2.05 50.0
MV-90 35kV 100% IL 500 37 19.6 8.76 12 1.63 2.05 49.1
MV-90 35kV 100% IL 750 61 19.1 8.76 15 2.59 2.05 56.7
MV-90 35kV 100% IL 750 61 19.1 8.76 12 2.05 2.05 55.6
MV-90 35kV 100% IL 1000 61 22.0 8.76 20 2.59 2.05 60.4
MV-90 35kV 100% IL 1000 61 22.0 8.76 16 2.05 2.05 59.3
MV-90 35kV 100% IL 1000 61 22.0 8.76 11 2.05 2.05 59.3
MV-90 35kV 100% IL 1000 61 22.0 8.76 20 1.29 2.05 57.8
MV-90 35kV 100% IL 1000 61 22.0 8.76 13 1.63 2.05 58.5
MV-90 35kV 100% IL 1250 91 20.5 8.76 15 2.05 2.05 62.8
MV-90 35kV 100% IL 1250 91 20.5 8.76 20 2.05 2.05 62.8

MV-105 Series (105°C Operation)

Part No. Rated Voltage Size (AWG/MCM) No. of Wires Cond. Dia (mm) Insul. Thick (mm) Neutral Wires Neutral Dia (mm) Jacket Thick (mm) Cable Dia (mm)
MV-105 35kV 100% IL 1/0 19 9.0 8.76 16 1.63 1.4 36.0
MV-105 35kV 100% IL 1/0 19 9.0 8.76 11 1.63 1.4 36.0
MV-105 35kV 100% IL 1/0 19 9.0 8.76 8 1.63 1.4 36.0
MV-105 35kV 100% IL 1/0 19 9.0 8.76 6 1.63 1.4 36.0
MV-105 35kV 100% IL 2/0 19 10.1 8.76 13 2.05 1.4 39.2
MV-105 35kV 100% IL 2/0 19 10.1 8.76 7 2.05 1.4 39.2
MV-105 35kV 100% IL 2/0 19 10.1 8.76 10 1.63 1.4 38.3
MV-105 35kV 100% IL 2/0 19 10.1 8.76 7 1.63 1.4 38.3
MV-105 35kV 100% IL 3/0 19 11.4 8.76 16 2.05 1.4 40.4
MV-105 35kV 100% IL 3/0 19 11.4 8.76 8 2.05 1.4 40.4
MV-105 35kV 100% IL 3/0 19 11.4 8.76 9 1.63 1.4 39.6
MV-105 35kV 100% IL 4/0 19 12.8 8.76 20 2.05 1.4 41.8
MV-105 35kV 100% IL 4/0 19 12.8 8.76 15 2.05 1.4 41.8
MV-105 35kV 100% IL 4/0 19 12.8 8.76 10 2.05 1.4 41.8
MV-105 35kV 100% IL 4/0 19 12.8 8.76 16 1.63 1.4 41.0
MV-105 35kV 100% IL 4/0 19 12.8 8.76 11 1.63 1.4 41.0
MV-105 35kV 100% IL 250 37 13.9 8.76 13 1.63 2.05 43.4
MV-105 35kV 100% IL 350 37 16.5 8.76 11 2.05 2.05 46.8
MV-105 35kV 100% IL 500 37 19.6 8.76 16 2.05 2.05 50.0
MV-105 35kV 100% IL 500 37 19.6 8.76 12 1.63 2.05 49.1
MV-105 35kV 100% IL 750 61 19.1 8.76 15 2.59 2.05 56.7
MV-105 35kV 100% IL 750 61 19.1 8.76 12 2.05 2.05 55.6
MV-105 35kV 100% IL 1000 61 22.0 8.76 20 2.59 2.05 60.4
MV-105 35kV 100% IL 1000 61 22.0 8.76 16 2.05 2.05 59.3
MV-105 35kV 100% IL 1000 61 22.0 8.76 11 2.05 2.05 59.3
MV-105 35kV 100% IL 1000 61 22.0 8.76 20 1.29 2.05 57.8
MV-105 35kV 100% IL 1000 61 22.0 8.76 13 1.63 2.05 58.5
MV-105 35kV 100% IL 1250 91 20.5 8.76 15 2.05 2.05 62.8
MV-105 35kV 100% IL 1250 91 20.5 8.76 20 2.05 2.05 62.8

Key to Columns:

  • Cond. Dia: Conductor Diameter

  • Insul. Thick: Insulation Thickness

  • Neutral Wires: Number of neutral wires

  • Neutral Dia: Diameter of each neutral wire

  • Jacket Thick: Outer jacket thickness

  • Cable Dia: Overall cable diameter

Product Classification:

  • Temperature Class:

    • MV-90 Series: 90°C continuous operation

    • MV-105 Series: 105°C continuous operation

  • Voltage Range: 5kV to 46kV (35kV shown)

  • Insulation Level: 100% or 133% (100% IL shown)

  • Conductor Sizes: 1/0 AWG to 1250 MCM
