AWA Armor Aluminum Conductor XLPE Insulated Power Cable – YJV72 YJLV72

Low Voltage Power Cables Armored Power Cables
Description

AWA Armor Aluminum Conductor XLPE Insulated Power Cable

Product Overview

Aluminum wire armoured cable is for industrial wiring and mains distribution. It can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standard: Our cables meet the China National Standard, and also could meet your request: BS, DIN, AITM IEC, or as your requirement.

Features & Benefits

  • Permissible Long-Term Working Temperature: XLPE insulated is 90°C; PVC insulated is 70°C.

  • Laying Temperature: During cable laying, the ambient temperature must be above 0°C.

  • Bending Radius (during laying and installation):

    • Unarmoured cable: not less than 6 times the external diameter of cable.

    • Armoured or copper tape screened cable: not less than 12 times the external diameter of cable.

    • Flexible cable with screen layers: not less than 6 times the external diameter of cable.

  • Optional Special Types: Fire-retardant, flame-resisting, low-halogen, low-fume, non-halogen, acid and alkali proof can be supplied upon request.

Typical Applications

  • Industrial wiring

  • Mains distribution

  • Laid direct in the ground

  • In ducts

  • Clipped to surface

  • On trays

  • In free air

  • Embedded in concrete

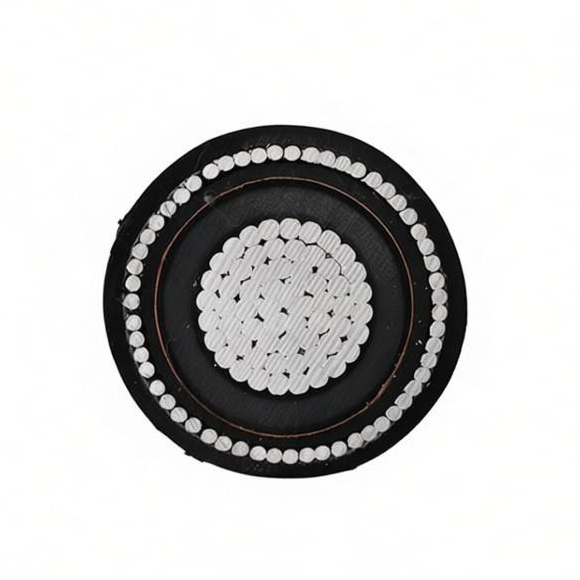

Construction

  • Conductor: Aluminum

  • Insulation: XLPE

  • Sheath: PVC

  • Filler: Suitable filler

  • Armour: Aluminium wire armour (AWA)

Technical Specifications

Parameter Table – YJV72 / YJLV72

Type Specification (mm²) Outer Diameter of Conductor (mm) Nominal Thickness of Insulation (mm) Diameter of Aluminium Wire (mm) Nominal Sheath Thickness (mm) Approx. Outer Diameter of Cable (mm) Approx. Weight Cu (kg/km) Approx. Weight Al (kg/km) Ampacity Air Cu (A) Ampacity Air Al (A) Ampacity Soil Cu (A) Ampacity Soil Al (A)
YJV72 / YJLV72 1×4 RE 2.24 0.7 1.25 1.8 16.9 228 204 45 35 60 50
YJV72 / YJLV72 1×6 RE 2.76 0.7 1.25 1.8 16.9 258 222 55 45 70 50
YJV72 / YJLV72 1×10 CC 3.8 0.7 1.25 1.8 16.9 321 261 75 60 95 75
YJV72 / YJLV72 1×16 CC 4.8 0.7 1.25 1.8 17.0 357 255 100 80 125 100
YJV72 / YJLV72 1×25 CC 6.0 0.9 1.25 1.8 17.4 482 323 140 115 160 130
YJV72 / YJLV72 1×35 CC 7.0 0.9 1.25 1.8 18.4 597 375 175 140 190 150
YJV72 / YJLV72 1×50 CC 8.4 1.0 1.6 1.8 19.6 788 487 210 170 225 180
YJV72 / YJLV72 1×70 CC 10.0 1.1 1.6 1.8 21.5 1032 598 270 215 280 225
YJV72 / YJLV72 1×95 CC 11.5 1.1 1.6 1.8 23.1 1319 718 340 275 335 270
YJV72 / YJLV72 1×120 CC 13.0 1.2 2.0 1.8 24.7 1657 892 400 320 380 305
YJV72 / YJLV72 1×150 CC 14.5 1.4 2.0 1.8 26.7 1960 1048 460 370 425 340
YJV72 / YJLV72 1×185 CC 16.2 1.6 2.0 1.8 28.8 2375 1205 530 415 480 375
YJV72 / YJLV72 1×240 CC 18.4 1.7 2.0 1.8 31.6 3004 1467 625 490 555 435
YJV72 / YJLV72 1×300 CC 20.5 1.8 2.0 1.9 34.2 3655 1722 720 565 630 495
YJV72 / YJLV72 1×400 CC 23.5 2.0 2.5 2.0 39.3 4725 2245 815 640 705 555
YJV72 / YJLV72 1×500 CC 26.5 2.2 2.5 2.2 44.3 5837 2686 855 680 765 595
YJV72 / YJLV72 1×630 CC 30.0 2.4 2.5 2.3 50.4 7326 3271 980 790 860 680

Note: RE = circular solid, CC = compacted circular stranded, SM = sector shaped stranded.

All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • China National Standard

  • Also available to meet BS, DIN, AITM IEC, or as customer requirement.

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: YJV72 / YJLV72

  • Specification: e.g., 1×4 RE, 1×25 CC, 1×240 CC, 1×630 CC

  • Conductor: Aluminum

  • Insulation: XLPE

  • Sheath: PVC

  • Armour: Aluminium wire armour (AWA)

  • Special Requirements: Fire-retardant, flame-resisting, low-halogen, low-fume, non-halogen, acid and alkali proof (upon request)

  • Quantity: Total length in meters
