Product Overview
The CHEVP90/NA is a high-performance, Fire Resistant marine communication cable designed for mission-critical circuits where circuit integrity must be maintained during a fire. It combines EPR insulation with mica glass tape, individual pair screening, and galvanized steel wire armor to provide unparalleled protection against fire, mechanical stress, and electromagnetic interference (EMI). This cable is engineered to meet the stringent safety and performance requirements of the IEC 60092 series and IEC 60331 for fire resistance.
Key Features & Benefits
-
Superior Fire Survival: Constructed with mica glass tape and EPR insulation, the cable is certified to IEC 60331 standards, ensuring continued operation of essential systems in the event of a fire.
-
Enhanced Safety & Protection: Features Low Smoke, Halogen-Free (LSHF) properties (IEC 60754, IEC 61034) and high Flame Retardancy (IEC 60332). The tinned copper braid/Al-PET tape screen provides effective EMI shielding, while the galvanized steel wire armor offers robust mechanical protection.
-
Rugged Marine & Industrial Construction: Built to withstand the harshest conditions on ships, offshore platforms, and in heavy industries, ensuring long-term reliability.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

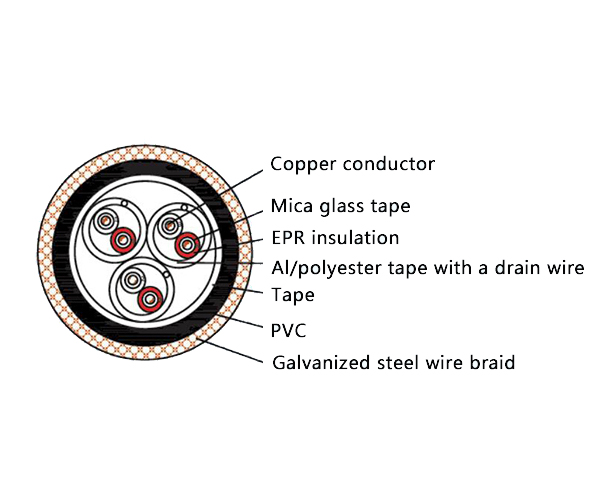

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | V | PVC |
| Screen | P | Tinned Copper Wire Braid, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for essential systems that require maintained functionality under fire conditions:
-
Marine & Offshore: Critical telecommunication, alarm, instrumentation, and control circuits on vessels and oil & gas platforms.
-
Industrial: Safety and control systems in power plants, chemical processing facilities, metallurgy, and mining where fire integrity is crucial.
