Product Overview
The CHJPJ80/SC is a high-performance, armoured marine communication cable designed for fixed installations where fire safety, durability, and reliable data transmission are critical. It features Cross-Linked Polyethylene (XLPE) insulation and a Halogen-Free, Low Smoke Flame Retardant (LSHF) construction. This robust cable, protected by a tinned copper braid armor, is engineered for demanding environments on ships, offshore platforms, and in heavy industries, fully complying with the IEC 60092 series of marine electrical standards.
Key Features & Benefits
-
Maximum Fire Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic gas and smoke emission. Certified for excellent Flame Retardancy (IEC 60332-1 & -3-22), enhancing safety in enclosed spaces.
-
Robust Armoured Design: XLPE insulation ensures high thermal stability (90°C) and excellent electrical properties. The tinned copper wire braid armor provides superior mechanical protection, effective earthing, and electromagnetic interference (EMI) shielding.
-
Optimized for Protected Installations: The construction with an inner SHF2 sheath and armor, but without an additional outer sheath, offers a durable and streamlined solution for routing in cable trays, conduits, or protected areas aboard vessels and industrial plants.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

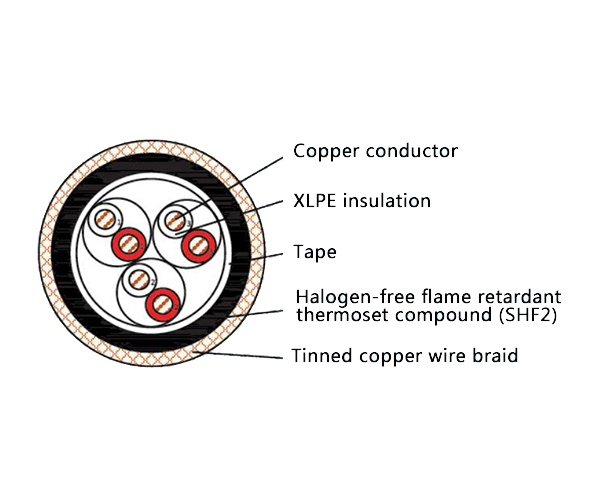

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for use in:
-
Fixed installations for telecommunication, instrumentation, computer, and control systems on marine vessels and offshore constructions (e.g., oil & gas platforms).
-
Critical data and communication networks in demanding industrial environments such as power plants, chemical processing facilities, metallurgy, and mining.
