Product Overview
The CHJPJ90/SC is a high-specification Low Smoke Halogen Free (LSHF), Flame Retardant Marine Communication Cable designed for critical signal transmission. It features XLPE (Cross-Linked Polyethylene) insulation for superior electrical performance and a Galvanized Steel Wire Braid armor for maximum mechanical protection. This version is constructed without an outer sheath (Code 0), making it suitable for specific installation requirements within conduits, trays, or as a component in multi-cable systems where an overall jacket is not needed or is separately specified.
Key Features & Benefits
-
Comprehensive Fire Safety: Meets Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) standards, minimizing toxic fumes and smoke opacity. It is also Flame Retardant (IEC 60332-1 & -3-22), helping to prevent fire spread.
-
High-Performance Insulation: XLPE insulation ensures excellent thermal endurance (rated for 90°C), high dielectric strength, and resistance to environmental stress cracking.
-
Robust Armored Core: The Galvanized Steel Wire Braid armor provides essential protection against mechanical impact, crushing, and rodent damage. The Cross-linked Polyolefin (SHF2) inner sheath maintains the LSHF integrity.
-
Flexible Installation Design: The "Without Outer Sheath" construction offers installation flexibility for engineers, allowing the cable to be used in contained systems or where an overall jacket is applied separately.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Operating Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
Cable Construction

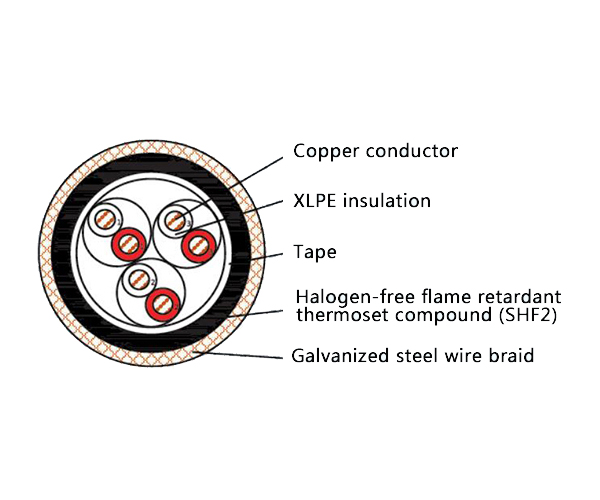

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international marine and safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Typical Applications
This armored, unsheathed cable is engineered for high-reliability applications in fixed installations where fire safety and mechanical protection are critical:
-
Telecommunication, instrumentation, and data processing systems within the protected cable runs of marine vessels and offshore platforms.
-
Control and signaling circuits in demanding industrial environments like power plants, chemical processing facilities, and mining operations, often installed within cable trays or conduits.
