Product Overview
The CHJPJ80/NC is a specialized Fire Resistant marine communication cable designed to ensure the integrity of critical telecommunication and data systems during fire emergencies. It features a core construction of XLPE insulation over mica glass tape for fire resistance, cross-linked polyolefin inner sheath (SHF2), and copper braid armor. Supplied without an outer sheath (Code 0), this configuration is engineered for applications requiring final sheathing or integration into specific containment systems, while meeting stringent IEC 60331 Fire Resistant and IEC 60092 marine standards.
Key Features & Benefits
-
Guaranteed Fire Survival: Certified to IEC 60331 for maintaining circuit functionality under direct flame exposure, a critical feature for safety and emergency systems. Complies with Flame Retardant (IEC 60332), Halogen-Free (IEC 60754), and Low Smoke (IEC 61034) requirements for comprehensive safety.
-
High-Temperature & Durability: The XLPE insulation with mica glass tape provides excellent thermal endurance (90°C) and fire-resistant properties. The cross-linked polyolefin (SHF2) inner sheath offers robust mechanical and environmental protection.
-
EMI Shielding & Flexibility: The tinned copper wire braid armor (Code 8) ensures effective electromagnetic interference (EMI) shielding and mechanical protection. The lack of an outer sheath allows for installation flexibility in conduits, trays, or where a specific oversheath is applied on-site.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

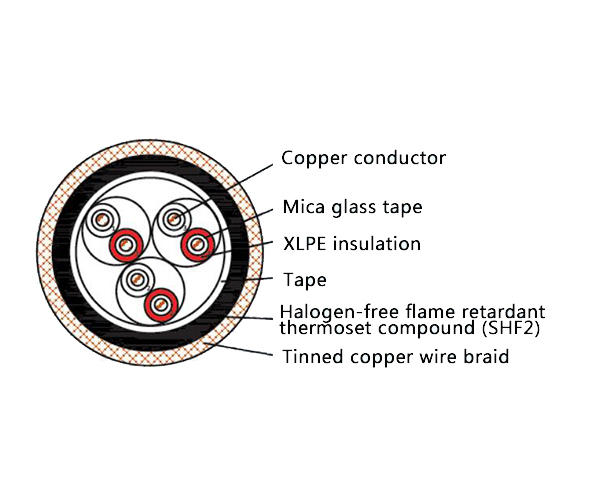

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for mission-critical communication circuits in:
-
Essential telecommunication, instrumentation, and data processing systems on ships and offshore constructions (e.g., oil platforms) where fire integrity is paramount.
-
Critical communication links in high-risk industrial environments such as power plants, chemical industry facilities, metallurgy, and mining.
