Product Overview
The CHJ86/SC is a flexible and durable Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable designed for reliable telecommunication, instrumentation, and data transmission where ease of installation and enhanced safety are priorities. It features XLPE (Cross-linked Polyethylene) insulation, a flexible tinned copper wire braid armor, and a LSHF thermoplastic polyolefin (SHF1) outer sheath. This construction provides superior fire safety, good mechanical protection with high flexibility, and reliable performance for communication systems on ships, offshore platforms, and in industrial environments, fully complying with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fume emission, improving safety during evacuation. Certified Flame Retardant (IEC 60332-1 & -3-22) to inhibit fire spread.
-
Flexible & Easy to Install: The tinned copper wire braid armor (Code 8) provides effective mechanical protection while ensuring high flexibility, making the cable easier to route and install in confined spaces compared to rigid steel-armored cables.
-
Inherent EMI Shielding: The copper braid armor also offers a degree of shielding against electromagnetic interference (EMI), beneficial for signal integrity.
-
Reliable & Durable: XLPE insulation ensures excellent electrical properties, thermal stability (90°C), and moisture resistance for long-term reliability.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

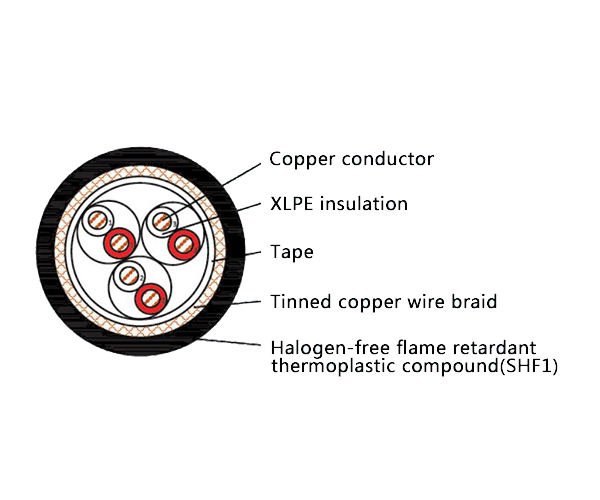

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for:
-
Telecommunication, instrumentation, and computer systems on ships and offshore platforms where flexible, easy-to-install cabling is advantageous.
-
General communication and control wiring in industries such as power generation, chemical processing, and mining.
