Product Overview
The CKEPJ95/NC represents a top-tier, heavy-duty armored Fire Resistant marine control cable, engineered for the most demanding applications where maximum mechanical protection and ultimate fire safety are required. It combines the critical IEC 60331 fire resistance and Low Smoke Halogen Free (LSHF) safety features with a robust construction featuring galvanized steel wire braid armor and a double-layer Cross-linked Polyolefin (SHF2) sheath. This cable is designed to ensure circuit integrity under fire, withstand severe mechanical stress, and resist harsh environmental conditions on ships, offshore platforms, and in extreme industrial settings.
Key Features & Benefits
-
Certified Fire Integrity: Complies with IEC 60331, guaranteeing continued operation of essential circuits (e.g., emergency shutdown, alarms, fire pumps) during a fire event.
-
Superior Personnel & Asset Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic/corrosive gas emission and smoke opacity for safer evacuation and reduced equipment damage.
-
Heavy-Duty Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides exceptional resistance to crushing, impact, abrasion, and rodent attack, far exceeding standard copper braid.
-
Enhanced Environmental Resilience: The dual-layer Cross-linked Polyolefin (SHF2) sheath offers excellent thermal stability, chemical/oil resistance, and durability, ensuring long-term performance in harsh conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available on request).

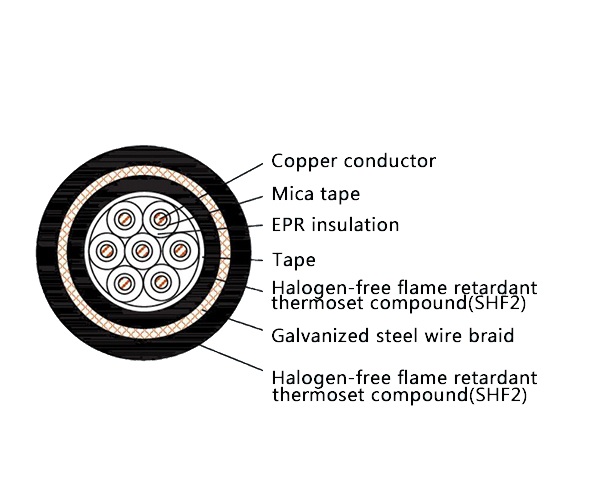

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical, fixed installations in environments exposed to severe mechanical risks and requiring guaranteed fire performance:
-
Marine & Offshore: Essential circuits in high-risk zones, engine rooms, deck areas, and on oil rigs & FPSOs where cables may be subject to impact, vibration, or crushing.
-
Heavy & Hazardous Industry: Vital control, power, and instrumentation systems in mining, chemical plants, steel mills, and power generation, particularly in exposed trays, conduits, or harsh floor-level installations.
