Product Overview
The CKJPJP85/SC is a premium-grade Low Smoke Halogen Free (LSHF), Flame Retardant, and Screened marine control cable, engineered for applications demanding superior fire safety, electromagnetic compatibility, and flexible yet robust mechanical protection. It features XLPE insulation, an effective EMI screen, a flexible tinned copper wire braid armor, and a resilient double-layer Cross-linked Polyolefin (SHF2) sheath. This construction is ideal for sensitive control and power systems in harsh environments where flexibility, durability, and maximum safety are paramount, fully complying with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties significantly reduce the emission of toxic and corrosive fumes, enhancing personnel safety during fire incidents in confined spaces like vessel compartments or industrial plants.
-
Dual-Layer Protection & Shielding: Offers both an electrical screen for reliable EMI/RFI protection and a flexible tinned copper wire braid armor for excellent mechanical defense against abrasion, cutting, and vibration. The double-layer SHF2 sheath provides exceptional thermal, chemical, and environmental resistance.
-
Flexible & Durable Design: The copper wire armor provides greater flexibility and ease of installation compared to steel armor, making it suitable for complex cable runs. Combined with high-performance XLPE insulation (90°C), it ensures long-term reliability in demanding conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

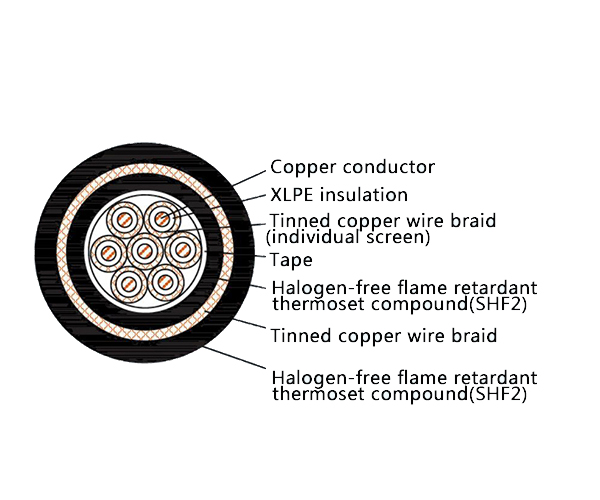

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical circuits that require a balance of fire safety, signal integrity, mechanical durability, and installation flexibility.
-
Marine & Offshore: Control, instrumentation, and power systems on ships, yachts, and offshore platforms, especially in areas requiring frequent cable movement, high flexibility (e.g., movable equipment connections), and adherence to strict LSHF safety codes.
-
Industrial Automation & Infrastructure: Sensitive control wiring in power plants, chemical processing facilities, manufacturing lines, and railway systems where protection against electromagnetic interference, mechanical stress, and fire hazards is essential.
