Product Overview
The CKJPJP95/SC represents a top-tier Low Smoke Halogen Free (LSHF), Flame Retardant, Screened, and Armored marine control cable, engineered for the most critical and demanding applications. It combines the ultimate in safety and durability: XLPE insulation, effective EMI shielding, heavy-duty galvanized steel wire armor, and a robust double-layer Cross-linked Polyolefin (SHF2) sheath. This construction is designed to ensure maximum circuit integrity, fire safety, and mechanical protection in harsh marine, offshore, and industrial environments, complying fully with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Ultimate Safety & Durability: Offers the combined benefits of Halogen-Free, Low Smoke (LSHF) properties for enhanced personnel safety, plus a double-layer SHF2 sheath for superior thermal, mechanical, and chemical resistance. The galvanized steel wire armor provides maximum protection against crushing, impact, and rodent damage.
-
Comprehensive Signal & Environmental Protection: Features an integrated electrical screen (tinned copper braid or Alu/Polyester tape) to safeguard against electromagnetic interference (EMI). The overall design ensures reliable performance in the toughest conditions, including high ambient temperatures (90°C rating).
-
High-Performance Construction: Every layer is optimized for harsh environments—from the electrical stability of XLPE insulation to the toughness of the SHF2 sheaths and the strength of the steel armor.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

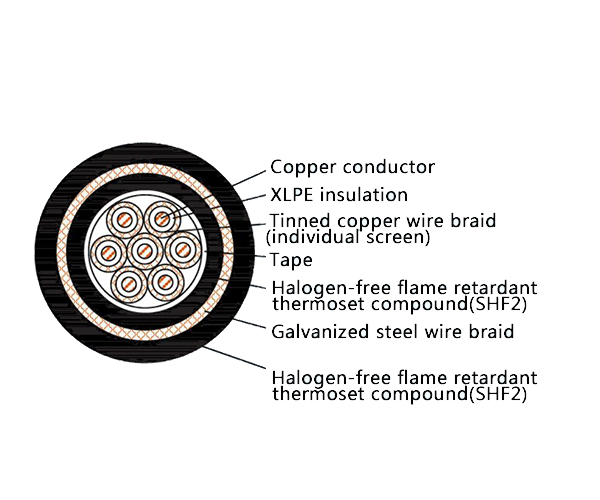

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for the most vital and exposed circuits where failure is not an option:
-
Marine & Offshore: Critical control, power, and safety system circuits on ships, oil & gas platforms, and FPSOs, especially in high-risk fire zones, engine rooms, and exposed deck areas requiring maximum mechanical and fire safety.
-
Demanding Industrial Infrastructure: Essential control and automation systems in power generation (including nuclear facilities), chemical processing plants, mining, and heavy metallurgy where LSHF mandates, severe physical hazards, and EMI are all present.
