Product Overview
The CKJVP92/SA is a heavy-duty marine control cable engineered for the most demanding applications that require both superior electromagnetic shielding and maximum mechanical protection. It combines the reliability of XLPE insulation, effective electrical screening, and robust galvanized steel wire armor within a durable double-layer PVC sheath. This cable is designed to ensure signal integrity and physical resilience in harsh marine and industrial environments, fully complying with IEC 60092 standards for flame retardancy.
Key Features & Benefits
-
Dual-Layer Protection: Features a tinned copper braid or Alu/Polyester tape screen for effective EMI/RFI shielding, plus a galvanized steel wire braid armor for superior resistance against crushing, impact, abrasion, and rodent damage.
-
Robust & Durable Construction: The double-layer PVC sheath provides excellent moisture, oil, and chemical resistance. Combined with XLPE insulation (rated 90°C), it ensures long-term performance in challenging conditions.
-
Certified Safety: Complies with IEC 60332 standards for flame retardancy, making it suitable for bundled installation in critical safety areas.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

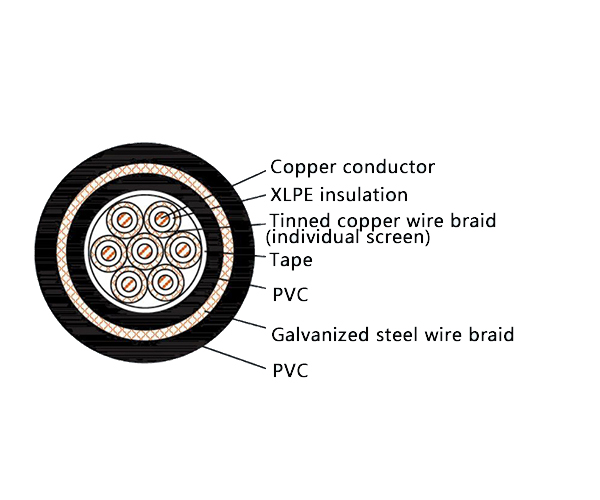

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is specified for critical control and power circuits in environments where interference protection and extreme mechanical durability are both required:
-
Marine & Offshore: Engine room control systems, thruster controls, automation panels, and vital auxiliary power circuits on ships, oil rigs, and offshore platforms, especially in exposed or high-risk mechanical areas.
-
Heavy Industry: Process control, motor circuits, and instrumentation in mining operations, power generation facilities, steel plants, and chemical processing plants with severe physical and electrical interference challenges.
