TECK90 600V 14/2 & 12/2 CU/XLPE/IA/PVC (Canadian Market)
Product Overview

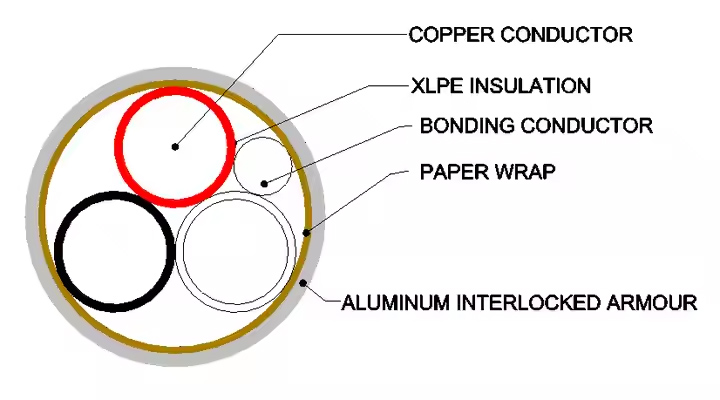

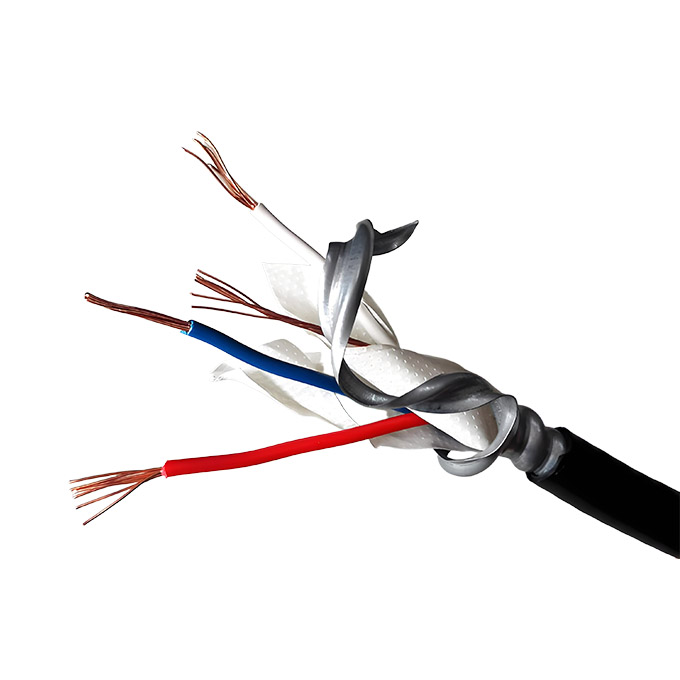

cUL-listed TECK90 cable features interlocked aluminum armor with RW90-rated XLPE insulation, designed as a cost-effective alternative to conduit wiring systems. Suitable for dry locations in commercial/industrial applications.
Key Features
cUL certification for Canadian installations
600V voltage rating
Interlocked aluminum armor for mechanical protection
Available in solid/striped copper configurations
Eliminates conduit requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductor | Class B Stranded Copper with RW90 Insulation |
| Insulation | XLPE (RW90 Rated) |
| Armor Type | Interlocked Aluminum |
| Voltage Rating | 600V |
| Size Options | 14/2, 12/2 |
| Conductor Config | 2-4 Solid (14-10 AWG) 3 Stranded (8-6 AWG) |
Applications
- Open/concealed wiring in dry locations
- Commercial building power distribution
- Retrofitting existing structures
- Mechanical equipment power supply
- Cost-effective conduit alternative
Compliance & Certifications
- CSA C22.1 Canadian Electrical Code Part I
- CSA C22.2 No.51.97 (Thermoplastic Insulated)
- CSA C22.2 No.51 (Armoured Cables)
- FT4 Flame Rating (CSA FT4)
Product Advantages
1. Installation Efficiency
- 360° flexible armor allows tight bends (minimum 7x cable diameter)
- No conduit threading/pulling required
2. Mechanical Protection
- Impact-resistant aluminum armor (meets 250 lbs/ft crush resistance)
- Corrosion-resistant jacket
3. Cost Savings
- 40-60% labor reduction vs traditional conduit systems
- Eliminates conduit/fitting costs
Conductor Configuration Guide
| AWG | Conductor Type | Core Count | Application Class |
|---|---|---|---|
| 14 | Solid | 2-4 | Branch Circuits |
| 12 | Solid | 2-3 | Lighting Systems |
| 10 | Solid | 2-4 | HVAC Equipment |
| 8 | Stranded | 3 | Motor Loads |
| 6 | Stranded | 3 | High-power Devices |
