Product Overview

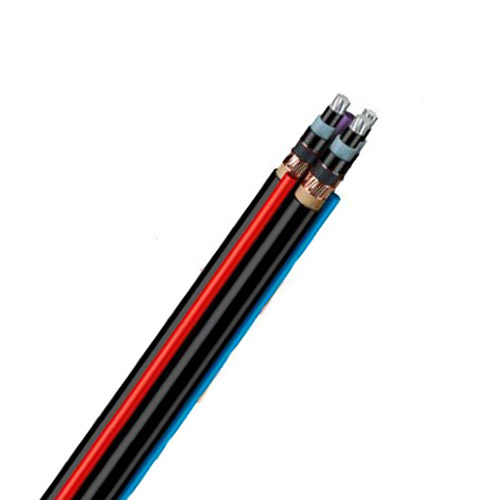

The N2XS(F)2Y Hybrid Cable is an innovative medium-voltage solution that integrates power transmission and fiber optic communication in a single cable. This three-core cable features stranded XLPE-insulated conductors with a PE sheath and integrated microtubes for subsequent fiber optic injection. Designed for longitudinally watertight applications, it serves as an ideal backbone for smart grid deployments and modern utility infrastructure.
Key Specifications
-
Rated Voltage: Please consult manufacturer for specific voltage rating
-
Standards: IEC 60502-2, DIN VDE 0276-620
-
Conductor: Aluminum or Copper, circular stranded (RM)
-
Insulation: XLPE
-
Sheath: PE
-
Special Feature: Integrated microtubes for fiber optic cables
Key Features & Benefits
-
Dual Functionality: Combines power transmission and fiber optic communication in one cable
-
Fiber Capacity: Supports subsequent injection of B-Lite Green fiber optic cables up to 72 fibers per microtube
-
Water Protection: Longitudinal watertight construction ensures reliability in various environments
-
High-Temperature Performance: Maximum operating temperature of 90°C with short-circuit rating of 250°C
-
Smart Grid Ready: Ideal for modern utility applications requiring both power and data transmission
-
Flexible Installation: Can be installed at temperatures as low as -20°C with 15xD bending radius
Applications
-
Smart grid backbone networks
-
Combined power and data transmission systems
-
Underground and duct installations
-
Outdoor and indoor power distribution
-
Water-crossing and submerged applications
-
Utility infrastructure modernization
Construction Characteristics
| Characteristic | Specification |
|---|---|
| Conductor | Aluminum/Copper, circular stranded (RM) |
| Insulation | Cross-linked Polyethylene (XLPE) |
| Sheath | Polyethylene (PE) |
| Special Feature | Integrated microtubes for fiber optics |
| Installation Temperature | -20 °C |
| Bending Factor | 15 x D (Cable Diameter) |
| Max. Operating Temperature | 90 °C |
| Max. Short-Circuit Temperature | 250 °C |
Technical Data - Aluminum Conductor
| Cross Section (mm²) | Nom. Insulation Thick. (mm) | Screen Section (mm²) | Sheath Thick. (mm) | Max. Outer Diam. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 150 | 3.4 | 25 | 2.5 | 73.5 | 3450 |
| 185 | 3.4 | 25 | 2.5 | 77.7 | 3750 |
| 240 | 3.4 | 25 | 2.5 | 81.9 | 4500 |
| 300 | 3.4 | 25 | 2.5 | 86.1 | 5100 |
| 400 | 3.4 | 25 | 2.5 | 94.5 | 6300 |
Technical Data - Copper Conductor
| Cross Section (mm²) | Nom. Insulation Thick. (mm) | Screen Section (mm²) | Sheath Thick. (mm) | Max. Outer Diam. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 150 | 3.4 | 25 | 2.5 | 73.5 | 6000 |
| 185 | 3.4 | 25 | 2.5 | 77.7 | 7050 |
| 240 | 3.4 | 25 | 2.5 | 81.9 | 8700 |
| 300 | 3.4 | 25 | 2.5 | 86.1 | 10650 |
| 400 | 3.4 | 25 | 2.5 | 94.5 | 13500 |
