Product Code: MGCH
Rated Voltage: 600/1000V
Standard: DIN 89158, IEC 60092-353
Product Overview
The MGCH halogen free marine power cable is a premium screened power cable specifically engineered for marine vessels and offshore applications. Featuring an overall copper braid screen and halogen-free construction, this cable provides excellent electromagnetic interference protection while ensuring maximum safety in case of fire. Ideal for fixed installations in various electromechanical and electronic equipment aboard marine vehicles.
Key Applications
-
Vessel Types: Cargo ships, Passenger vessels, Special-purpose vessels
-
Installation: Fixed installations in dry, wet, or oily locations
-
Applications: Various electromechanical and electronic equipment
-
Environments: All marine conditions including hazardous areas
Standards & Certifications
International Standards:
-
IEC 60092-353
-
IEC 60332-3 (Flame retardant)
-
IEC 60754-1/2 (Gas toxicity/corrosivity)
-
IEC 61034 (Smoke density)
National Standards:
-
DIN 89158
Key Features
-
EMI Protection: Overall copper braid screen minimizes environmental electromagnetic interference
-
Fire Safety: Flame retardant design prevents fire spread along cable length
-
Halogen Free: Eliminates corrosive gas emission in fire conditions
-
Environmental Resistance: Suitable for dry, wet, and oily locations
-
Durable Construction: Polyolefin sheath provides excellent mechanical protection

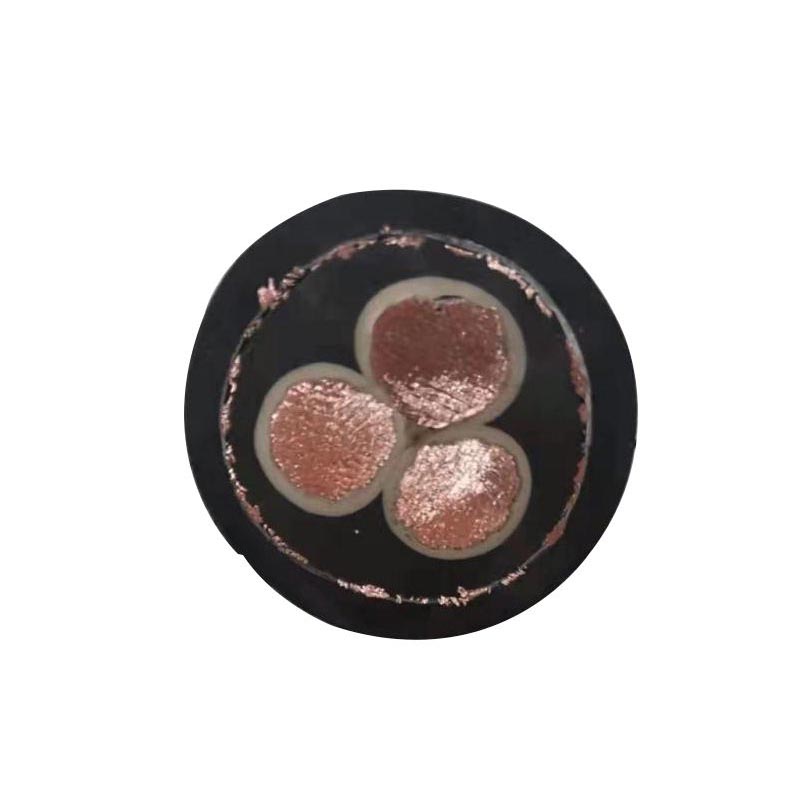

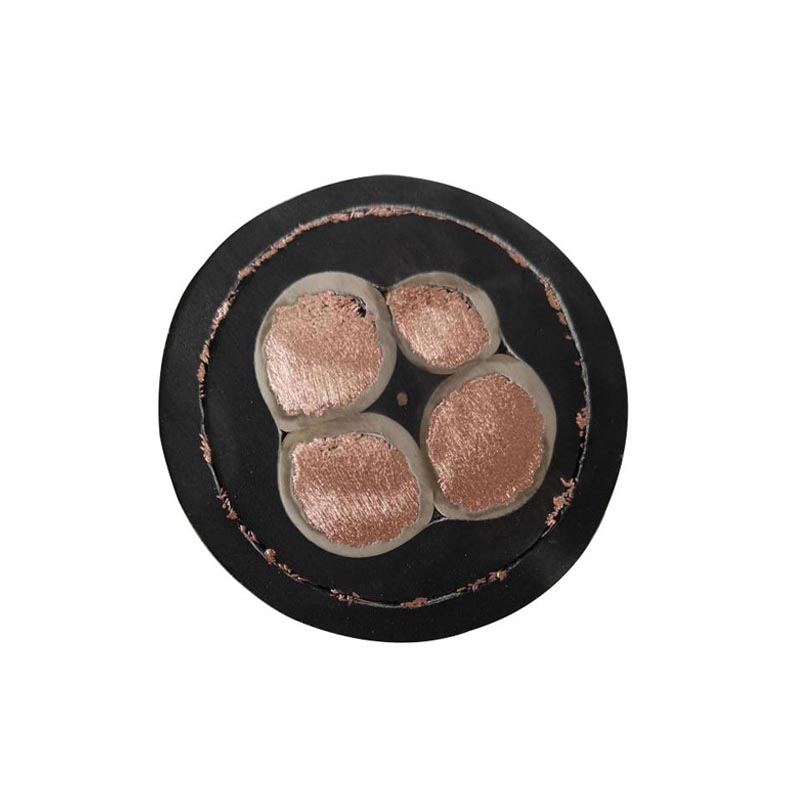

Cable Construction
-
Conductor
Annealed Stranded Bare Copper, Class 2 -
Insulation
HEPR (Crosslinked Hard grade Ethylene Propylene) -
Filler/Tape
Provides structural integrity and circularity -
Armour
Separator tape + Bare copper braid screen -
Sheath
Polyolefin - halogen-free material
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Rated Voltage Uo/U(Um) | 600/1000V |
| Test Voltage | 3500V |
Usage Characteristics
| Parameter | Specification |
|---|---|
| Minimum Installation Temperature | -10°C |
| Minimum Operating Temperature | -35°C |
| Short-circuit Max. Conductor Temperature | 250°C |
| Max. Conductor Temperature in Service | 85°C |
| Flame Retardant | IEC 60332-3 Cat. A |
| Smoke Density | IEC 61034 Compliant |
| Gases Corrosivity | IEC 60754-2 Compliant |
| Gases Toxicity | Non-toxic per IEC 60754-1 |
Minimum Internal Bending Radius
| Cable Structure Features | Over Diameter of Cable (D) | Minimum Internal Bending Radius |
|---|---|---|
| Metal Braided Armored | Any value | 6D |
| Non-armored | D ≤ 25mm | 4D |
| Non-armored | D > 25mm | 6D |
Safety & Performance Benefits
-
Fire Containment: Prevents fire spread by limiting combustion to the area directly exposed to flames
-
Environmental Protection: Suitable for all marine conditions including challenging wet and oily environments
-
Equipment Protection: EMI screening ensures reliable operation of sensitive electronic equipment
-
Passenger Safety: Halogen-free construction protects personnel from toxic fumes
