Product Code: CKJPF90/NC
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
CKJPF90/NC is an economical Low Smoke Zero Halogen (LSZH) and Fire Resistant marine control cable featuring Galvanized Steel Wire Armor and supplied without an outer sheath. This cost-effective design combines essential fire safety performance with mechanical protection, while the absence of an outer sheath facilitates flexible installation and integration into various marine and industrial systems.
Key Features
-
Economic LSZH Protection: Halogen-free Flame Retardant thermoplastic inner sheath (SHF1) ensures emission of low smoke and no toxic/corrosive gases when exposed to fire (IEC 60754, IEC 61034).
-
No Outer Sheath Design: Allows for easy penetration sealing, efficient heat dissipation, and flexible system integration.
-
Mechanical Protection: Galvanized Steel Wire Braid provides reliable protection against impact and crushing.
-
Circuit Integrity (Fire Resistant): Maintains operational continuity during fire conditions (IEC 60331).
-
Flame Retardant: Effectively prevents flame spread (IEC 60332-1 & -3-22).
Applications
This cable is suitable for cost-conscious applications requiring both fire safety and mechanical protection in a compact form:
-
Marine vessels and offshore platforms
-
Industrial control systems and switchboards
-
Power plants and chemical facilities
-
Applications where cables are bundled in protective conduits
-
Retrofit and maintenance projects requiring flexible installation
Standards Compliance
This product meets the following international standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

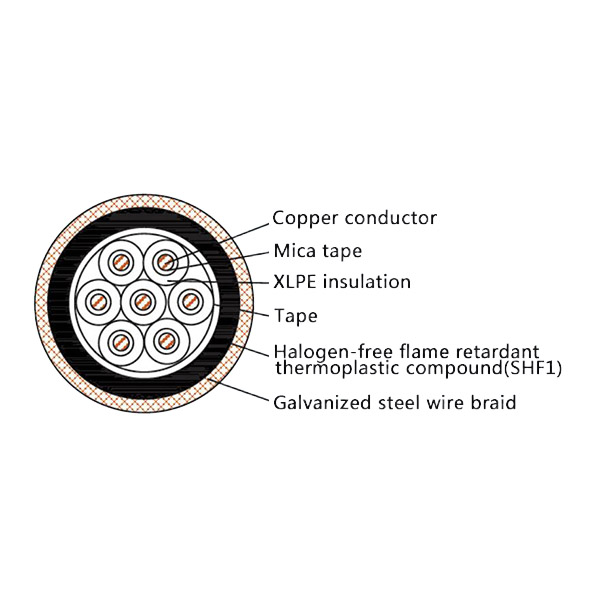

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | PF | Halogen-free Flame Retardant Thermoplastic Compound (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free, Low Smoke & Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1 to 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify:
-
Product Code: CKJPF90/NC
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJPF90/NC 12x1.5mm²
