Product Code: CKJPF96/NC
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
CKJPF96/NC is an economical yet fully functional Low Smoke Zero Halogen (LSZH), Fire Resistant, and Steel Wire Armored marine control cable. It features a dual-layer LSZH thermoplastic sheath (SHF1) and galvanized steel wire armor, providing comprehensive fire safety and mechanical protection at a competitive price point for various demanding applications.
Key Features
-
Cost-Effective LSZH Solution: Dual-layer Halogen-free Flame Retardant thermoplastic sheath (SHF1) ensures emission of low smoke and no toxic/corrosive gases (IEC 60754, IEC 61034).
-
Robust Mechanical Protection: Galvanized Steel Wire Braid armor provides reliable protection against crushing, impact, and rodent damage.
-
Circuit Integrity (Fire Resistant): Maintains operational continuity during fire conditions (IEC 60331).
-
Flame Retardant: Effectively prevents flame spread (IEC 60332-1 & -3-22).
-
Economic Choice: Offers essential safety features with excellent cost performance.
Applications
This cable is ideal for cost-sensitive applications requiring both fire safety and mechanical protection:
-
Marine vessels and offshore platforms
-
Industrial plants and mining operations
-
Power stations and chemical plants
-
Construction and building wiring systems
-
Areas requiring basic mechanical protection
Standards Compliance
This product meets international marine cable standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

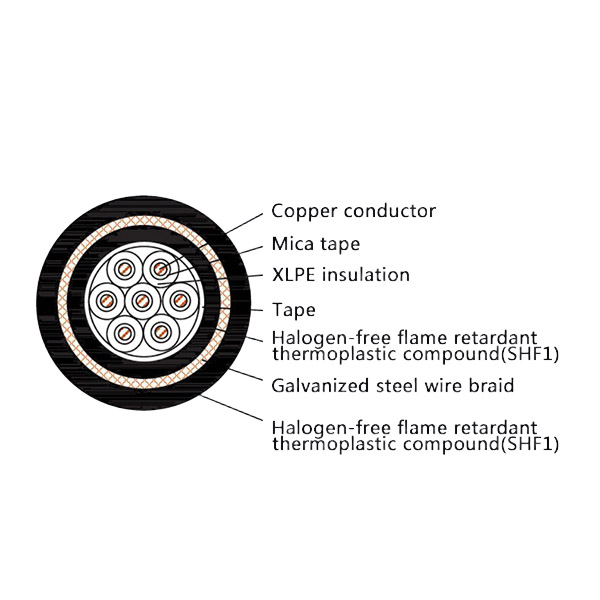

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | PF | Halogen-free Flame Retardant Thermoplastic Compound (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Halogen-free Flame Retardant Thermoplastic Compound (SHF1) |
| Sheath Color | - | Standard Black (other colors on request) |
| Flammability | NC | Halogen Free, Low Smoke & Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1 to 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify:
-
Product Code: CKJPF96/NC
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJPF96/NC 12x1.5mm²
