CKJPJ80/NC: LSZH Fire Resistant Marine Cable with Copper Braid (No Outer Sheath)

Product Code: CKJPJ80/NC
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃

Product Overview

CKJPJ80/NC is a premium Low Smoke Zero Halogen (LSZH) and Fire Resistant marine control cable, uniquely combining maximum fire safety with Tinned Copper Wire Braided Armor and supplied without an outer sheath. This design provides exceptional flexibility, effective electromagnetic shielding, and superior corrosion resistance, making it ideal for integration into control panels, cable trays, or situations where an overall jacket is not required.

Key Features

• Enhanced Safety (LSZH): The Halogen-free inner sheath (SHF2) ensures emission of extremely low smoke and no toxic/corrosive gases when exposed to fire (IEC 60754, IEC 61034), protecting personnel and equipment.

• Copper Braid Armor (Code 8): Provides excellent flexibility, EMI shielding, and corrosion resistance, ideal for sensitive equipment and tight spaces.

• No Outer Sheath: Facilitates easier bundling, penetration sealing, and integration into complex systems.

• Circuit Integrity (Fire Resistant): Maintains operational continuity during a fire (IEC 60331).

• Flame Retardant: Effectively prevents the spread of flame (IEC 60332-1 & -3-22).

Applications

This cable is specifically engineered for critical power, lighting, and control systems in demanding environments:

• Marine vessels and offshore platforms (e.g., oil platforms)

• Control panels and switchboards where flexibility and shielding are critical

• Applications requiring high flexibility and superior EMI/RFI shielding

• Chemical plants, power plants, and other high-risk industrial facilities

Standards Compliance

This product conforms to the highest international safety and performance standards:

• IEC 60092-350, 376 (General Construction & Design)

• IEC 60228 (Conductors)

• IEC 60092-360 (Insulation & Sheath)

• IEC 60331 (Fire Resistance)

• IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)

• IEC 60754 (Halogen Free)

• IEC 61034 (Low Smoke)

Construction & Technical Data

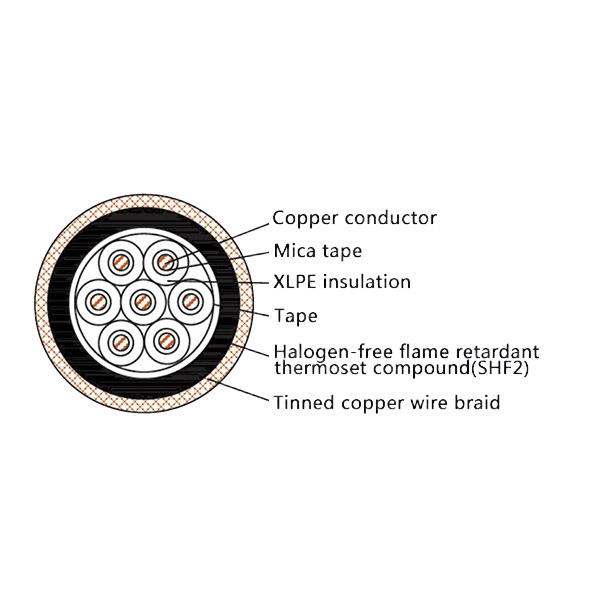

Cable Construction

Item	Code	Description / Material
Series Code	CK	Marine & Offshore Control Cable
Conductor	-	Tinned or Plain Stranded Annealed Copper Wire
Insulation	J	Mica Glass Tape + XLPE Insulation
Inner Sheath	PJ	Halogen-free Flame Retardant Thermoset Compound (SHF2)
Armor	8	Tinned/Plain Copper Wire Braided
Outer Sheath	0	Without Outer Sheath
Flammability	NC	Halogen Free, Low Smoke & Fire Resistant

Specifications

Ordering Information

When ordering, please specify the following parameters:

• Product Code: CKJPJ80/NC

• Number of Cores

• Conductor Cross-Section

• Length

Example: CKJPJ80/NC 12x1.5mm²
