CKJPJP90/NC Marine Control Cable: Low Smoke Zero Halogen Fire Resistant Screened
Product Overview
CKJPJP90/NC marine control cable offers premium fire-resistant performance with an innovative exposed armor design. Combining LSZH thermoset inner sheath, galvanized steel wire armor without outer sheath, mica-reinforced XLPE insulation, and electromagnetic screening for maximum protection in critical marine applications.
Key Features
-
Advanced Fire Protection: IEC 60331 fire resistant + IEC 60332 flame retardant certified
-
Exposed Armor Design: Galvanized steel wire armor without outer sheath
-
LSZH Inner Protection: Halogen-free thermoset inner sheath (SHF2)
-
Thermal Stability: Mica glass tape + XLPE insulation for 90°C operation
-
EMI Shielding: Copper braid or foil tape screening options
-
Environmental Safety: Zero halogen, low smoke emission (IEC 60754, 61034)
Applications
-
Offshore oil platforms critical systems
-
Marine vessel emergency control circuits
-
Emergency power and safety systems
-
Hazardous area industrial installations
-
Power generation emergency circuits
-
Chemical plants safety systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | Halogen-free thermoset (SHF2) |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | None (exposed armor) |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

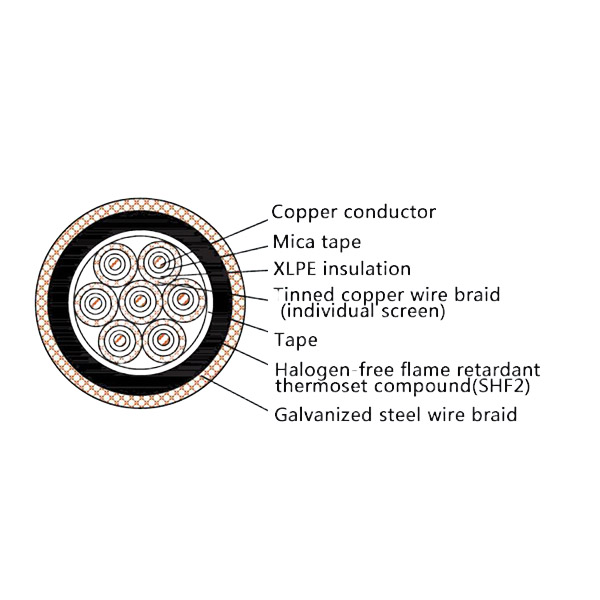

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore Control |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoset (SHF2) |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | None |
| Fire Rating | NC (Halogen Free Low Smoke Fire Resistant) |
Product Advantages
-
Enhanced Heat Dissipation: Exposed armor design improves thermal performance
-
Maximum Mechanical Protection: Steel wire armor provides superior durability
-
Environmental Safety: LSZH inner sheath ensures halogen-free operation
-
Cost Efficiency: Eliminates outer sheath while maintaining performance
-
Space Saving: Compact design for confined installations
-
Global Compliance: Meets international marine standards
