Product Overview

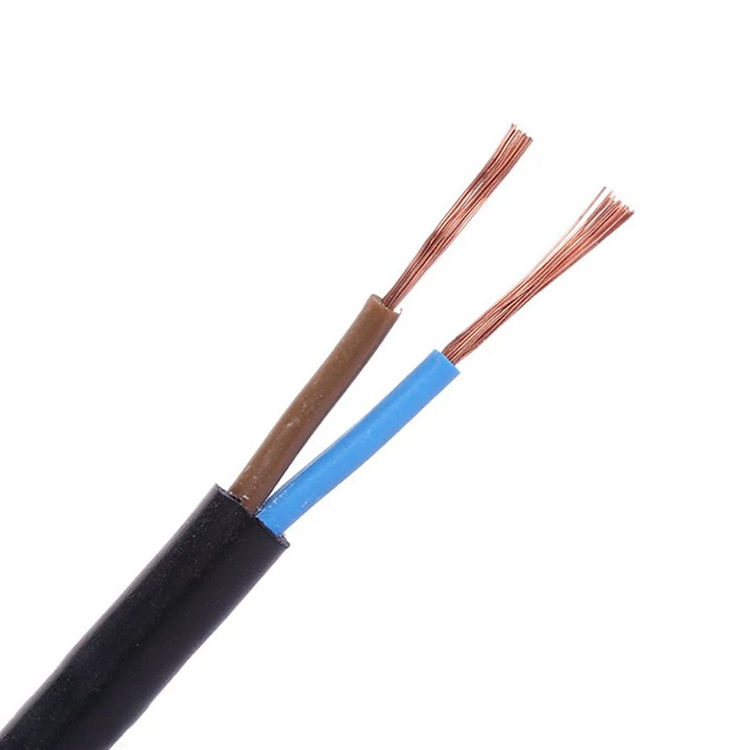

The H03VVH2-F harmonized PVC flat cable is engineered for low-stress portable appliances in domestic and office environments. Rated at 300/300V and compliant with IEC standards, it features flame-retardant construction for safe operation in temperatures from -30°C to +50°C. Ideal for small appliances where flexibility and compact design are essential.
Key Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Uo/U) | 300/300V |
| Test Voltage | 2000V AC |
| Max. Conductor Temp. | +70°C (160°C for 5s short circuit) |
| Bending Radius | Mobile: 15×D Fixed: 4×D (D=Cable diameter) |
| Temp. Range (Operation) | Mobile: -5°C to +50°C Fixed: -30°C to +50°C |
| Flame Retardancy | IEC 60332-1 Certified |
| Insulation Resistance | ≥0.010 MΩ·km (70°C) |
Construction Details
| Component | Material & Standard |
|---|---|

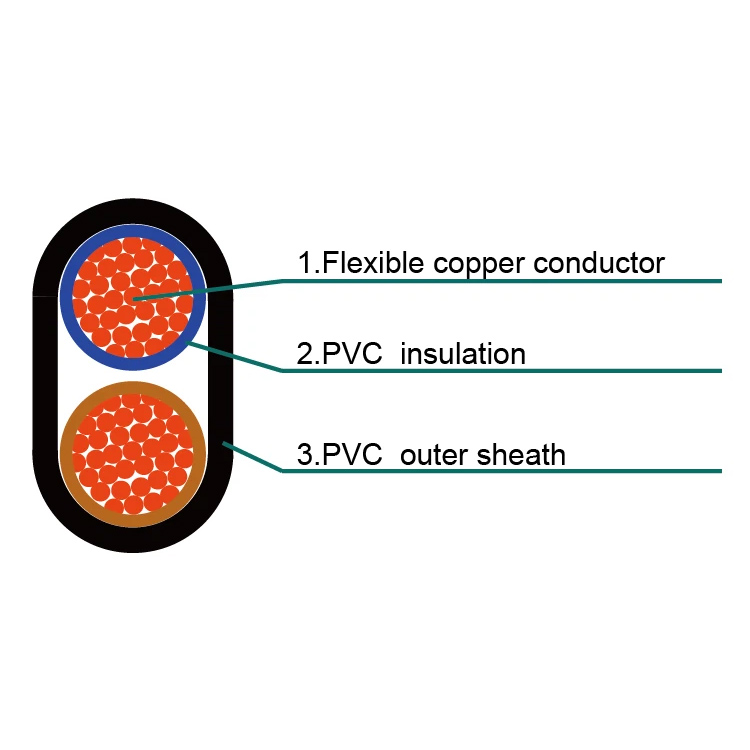

| Conductor | Bare copper fine wire |
| Insulation | PVC (Color-coded: Blue/Brown cores) |
| Sheath | Flat black PVC (Halogen-free) |
Core Dimensions & Electrical Data
| Cores × mm² | Insul. Thick. (mm) | Sheath Thick. (mm) | Cable Dimensions (W×H, mm) | Min. Insul. Resist. (MΩ·km) |
|---|---|---|---|---|
| 2 × 0.50 | 0.5 | 0.6 | 3.0×4.9 (Min) / 3.7×5.9 (Max) | 0.012 |
| 2 × 0.75 | 0.5 | 0.6 | 3.2×5.2 (Min) / 3.8×6.3 (Max) | 0.010 |
Approved Applications
-
Small Portable Appliances: Desk lamps, floor lamps, vacuum cleaners.
-
Home & Office Equipment: Radios, printers, computer peripherals.
-
Low-Stress Environments: Kitchens (non-heating), households, offices.
Prohibited Uses
-
Heating/cooking appliances
-
Industrial machinery or high-temperature zones
-
Outdoor/exposed installations
Technical Compliance
-
Flame Performance: Self-extinguishing (IEC 60332-1)
-
Voltage Standards: 300/300V max. operating voltage
-
Installation Notes: Minimum -5°C during installation
Certifications: CE, RoHS
Standards Met: IEC 60227, HD 21.2 S2
