UL Approved NM-B Non-Metallic Sheathed Cable 14/2, 14/3, 12/2, 12/3 | 600V PVC Jacket | Dry Locations

UL Certified Commercial & Building Cables10
Description

UL Approved NM-B Non-Metallic Sheathed Cable 14/2, 14/3, 12/2, 12/3 | 600V PVC Jacket | Dry Locations UL Approved NM-B Non-Metallic Sheathed Cable 14/2, 14/3, 12/2, 12/3 | 600V PVC Jacket | Dry Locations

Product Overview

UL 719 Certified NM-B Cable: Safe & Efficient Indoor Power Distribution
Type NM-B cable is a cost-effective, non-metallic sheathed electrical wire designed for indoor residential and commercial wiring. With a flame-retardant PVC jacket and 600V rating, it delivers reliable power to outlets, switches, and appliances while complying with UL 719 and NEC standards. Ideal for dry locations, it simplifies installations without conduit.

Key Features

  • Voltage Rating: 600V

  • Temperature Range: Up to 90°C (dry locations)

  • Flame Retardant: Meets FT4 standards

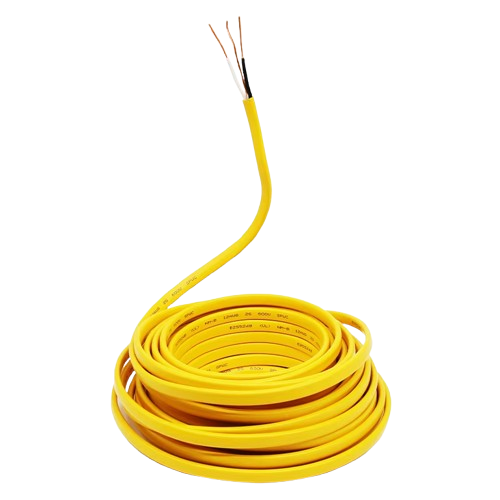

  • Jacket Colors: Size-coded (White: 14 AWG; Yellow: 12 AWG; Orange: 10 AWG; Black: 8/6 AWG)

  • RoHS Compliant: Environmentally safe materials

Applications

  • Residential Wiring: Branch circuits for outlets, switches, and lighting.

  • Concealed Work: Inside walls, ceilings, and floor cavities.

  • Commercial Spaces: Office buildings, retail units, and dry industrial areas.

  • Masonry Walls: Air voids of block/tile walls (non-damp locations).

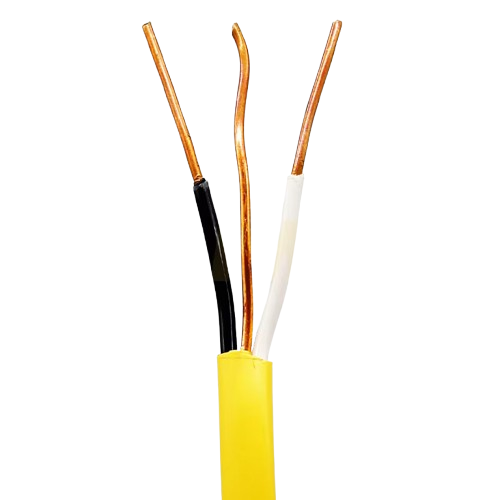

Cable Structure & Materials

Layer Specification
Conductor Annealed copper (ASTM B3/B8); Solid (14-10 AWG) / Stranded (8 AWG+)
Insulation Color-coded PVC (THHN/THWN-2) + Nylon jacket (90°C dry rating)
Ground Conductor Bare copper (ASTM B3/B8)
Assembly Parallel conductors wrapped in kraft paper tape
Jacket 30-mil PVC, flame-retardant, moisture-resistant, size-color coded

Technical Data

Size (AWG) Conductor Strands Insulation Thickness (mm) Ground Wire (AWG) Jacket Thickness (mm) Dimensions L×H (mm)
14/2 1 0.38 14 0.76 4.5 × 9.1
12/2 1 0.38 12 0.76 4.9 × 10.4
10/2 1 0.51 10 0.76 5.7 × 12.5
14/3 1 0.38 14 0.76 4.5 × 11.3
12/3 1 0.38 12 0.76 4.9 × 13.4
10/3 1 0.51 10 0.76 5.7 × 15.9

Conductor Colors:

  • 2-conductor: Black + White

  • 3-conductor: Black + White + Red

Standards & Certifications

  • UL Standard: UL 719

  • Compliance: NEC Article 334, RoHS 3

  • Voltage Rating: 600V

Product Advantages

  1. Easy Installation

    • Lightweight, flexible design reduces labor time vs. conduit systems.

  2. Safety Assurance

    • Flame-retardant jacket + integrated grounding wire (UL 719 certified).

  3. Durability

    • Nylon-over-PVC insulation resists abrasion and chemical corrosion.

  4. Code Compliance

    • Pre-sized grounding conductor meets NEC fault-current requirements.

  5. Cost Savings

    • 40% lower material cost than metal-clad alternatives.

Note: Not for outdoor, wet, or high-moisture locations. Always verify local electrical codes before installation.
