Technical Data
|
Model
|
EVC H07BZ5-F
|
Spec.
|
2×16+1G6+2×2.5
|
|||
|
Rated Temperature
|
90℃
|
Rated Voltage
|
AC 450/750V
|
|||
|
Conductor
|
No.
|
CORE 1
|
CORE 2
|
CORE 3
|
||
|
Standard Cross-section Area mm2
|
2×16
|
1×6
|
2×2.5
|
|||
|
Material
|
Bare Copper
|
Bare Copper
|
Bare Copper + Bulletproof Wire
|
|||
|
Conductor Construction mm
|
574/0.19±0.008
|
204/0.19±0.008
|
89/0.19±0.008
|
|||
|
Approximate OD mm
|
5.3±0.15
|
3.2±0.10
|
2.1±0.10
|
|||
|
Insulator
|
Material
|
XLPO
|
XLPO
|
XLPO
|
||
|
Standard Thickness mm
|
0.70
|
0.70
|
0.70
|
|||
|
Thinnest Thickness mm
|
0.53
|
0.53
|
0.53
|
|||
|
Color
|
Blue,Brown
|
Yellow,Green
|
Red,White
|
|||
|
OD mm
|
7.0±0.3
|
4.7±0.2
|
3.5±0.2
|
|||
|

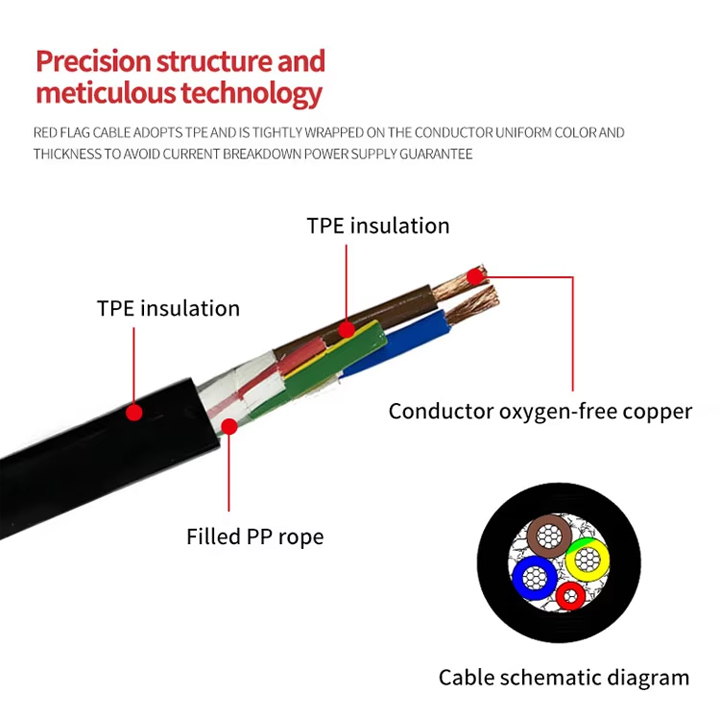

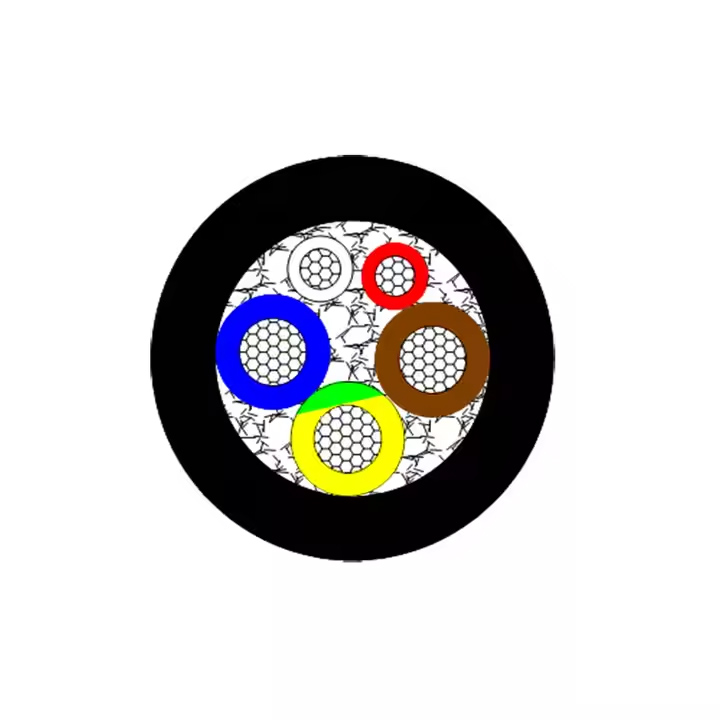

Core
|
OD mm
|
14.1Ref
|
|||
|
Filled
|
PP Rope
|
||||
|
Wrapped Material
|
Non-woven fabric
|
||||
|
Jacket
|
Material
|
TPE
|
|||
|
Standard Thickness mm
|
1.50
|
||||
|
Thinnest Thickness mm
|
1.18
|
||||
|
Color
|
Black
|
||||
|
OD mm
|
18.0±0.5
|
||||
|
Electrical Properties
|
20℃ Conductor Maximum DC Resistance Ω/km
|
1.21(16mm2)；3.3(6)；7.98(2.5)
|
|||
|
Pressure Test
|
3.5kVAC/15min no breakdown
|
||||
|
Minimum insulation resistance GΩ·m at 15°C
|
≥0.0039
|
||||
|
Other Properties
|
Temperature Range
|
-40℃~105℃
|
|||
|
RoHS 2.0
|
PASS
|
||||
|
Flame Retardant
|
FT2
|
||||
