CSA NMD90/NMWU Building Cable – 14/2, 12/2, 10/2, 6/3 for Residential Wiring-Canadian

CUL and CSA Listed NMD90 Wire

Product Description

Application
  • NMD90 cables may be used for exposed work in dry locations or concealed work in dry or damp locations.
  • Maximum allowable conductor temperature: 90°C.
  • Minimum recommended installation temperature:
    • Two-conductor cables: -25°C or -40°C (with suitable handling procedures).
    • Three-conductor cables: -25°C.
  • Storage: Material should be stored above 0°C for 24 hours prior to installation.
  • Maximum voltage rating: 300 volts for all intended applications.
  • Reference: Consult the Canadian Electrical Code (CEC) for further information.

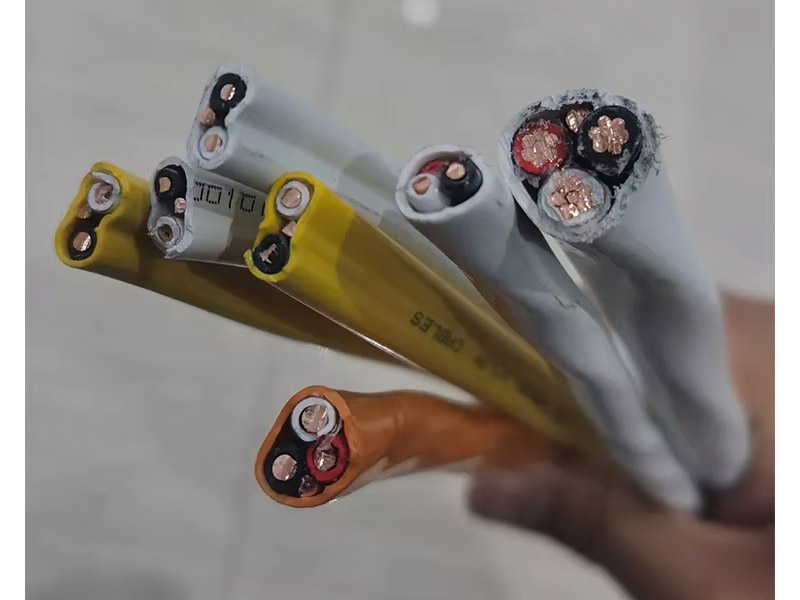

Structure

  1. Conductor:
    • Copper conductor with copper grounding wire (14 AWG to 2 AWG).
    • Aluminium alloy (8000 series ACM) with aluminium grounding wire (Grey, 6 AWG to 2 AWG).
  2. Insulation: Polyvinyl chloride (PVC).
  3. Protective covering: Nylon.
  4. Jacket: PVC, heat and moisture-resistant, flame retardant (FT1).
  5. Number of conductors:
    • 2 parallel laid.
    • 3 or 4 round laid.

Standards

  • CSA C22.2 No. 48 (non-metallic sheathed cable).
  • UL File No.: E487898.

Technical Specifications

  • Voltage: 300V.
  • Working temperature: For dry locations only, not exceeding 90°C.
  • Performance:
    • FT-1 flame retardant.
    • Heat and moisture-resistant.

Data Sheet

Size (AWG) Number of Strands Insulation Thickness (mm) Min. Nylon Thickness (mm) Grounding Core Size (AWG) Jacket Thickness (mm) Approx. OD L*H (mm)
14/2 1 0.38 0.10 14 0.76 4.5 x 9.1
12/2 1 0.38 0.10 12 0.76 4.9 x 10.4
10/2 1 0.51 0.10 10 0.76 5.7 x 12.5
8/2 7 0.76 0.13 10 0.76 7.4 x 15.9
6/2 7 0.76 0.13 10 0.76 8.4 x 17.5
14/3 1 0.38 0.10 14 0.76 4.5 x 11.3
12/3 1 0.38 0.10 12 0.76 4.9 x 13.4
10/3 1 0.51 0.10 10 0.76 5.7 x 15.9
8/3 7 0.76 0.13 10 0.76 7.4 x 21.1
6/3 7 0.76 0.13 10 0.76 8.4 x 23.9

Packaging & Shipping

  • Cables are packed in standard packages suitable for long-distance road transportation and shipping.
  • We ensure customers receive undamaged cables in good condition.
